Example - Ladder Diagram

DINC Example

The DINC instruction increases the assigned DWORD data register, D, by 1 until the execution condition is OFF.

Ladder Logic Example

When contact, M0.5, is powered ON, the value of the DWORD data register, D20, increments by 1 every scan.

This is the result after deenergizing the coil, M0.5.

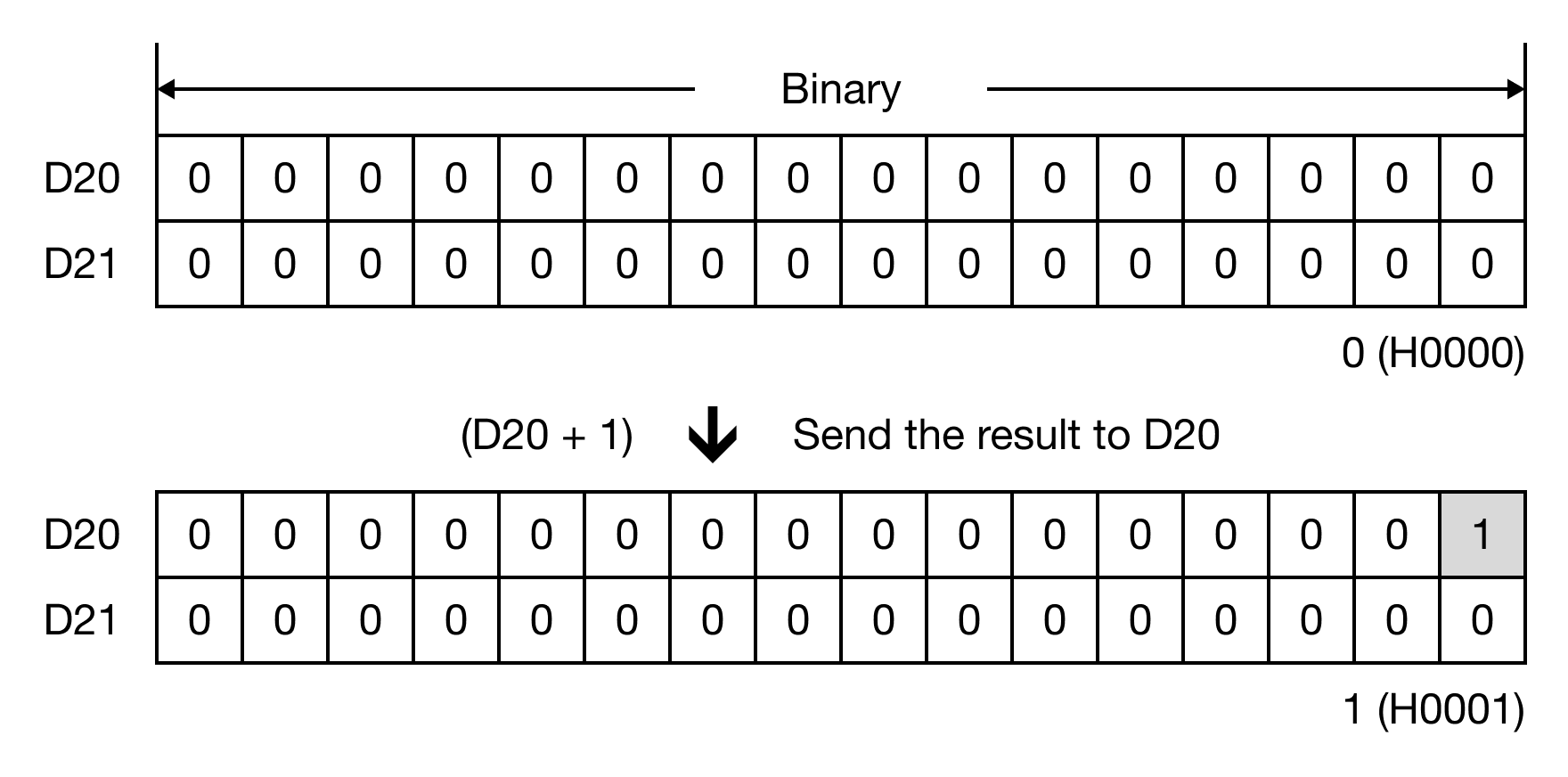

Binary Result

DINCP Example

The DINCP one-shot instruction increases the assigned DWORD data register, D, by 1.
Every time this instruction executes, it energizes the output only once.

Ladder Logic Example

When contact, M0.5, is powered ON, the value of the DWORD data register, D20, increments by 1 every scan.

Binary Result
