Example - Ladder Diagram

BRST

The BRST instruction sets a BOOL value in the WORD data register, D, from ON (1) to OFF (0). The BOOL value of the bit to set is defined by the value, n.

Ladder Diagram Example

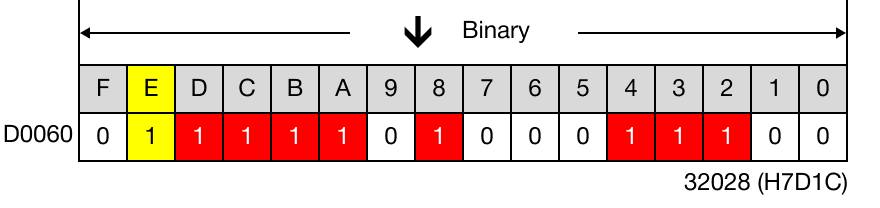

Currently, the value of the data register, D60, is 32,028, and the 14^th bit is 1.

When the contact, M3.5, is powered ON (1), the 14^th bit of the data register, D60, turns from 1 to 0.

As a result, the value of the data register, D60, is now 15,644, and the 14^th bit is now 0.

BRSTP

The BRSTP one-shot instruction sets a BOOL value in the WORD data register, D, from ON (1) to OFF (0). The BOOL value of the bit to set is defined by the value, n.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example

Currently, the value of the data register, D65, is -25,412, and the 3^rd bit is 1.

When the contact, M4.0, is powered ON (1), the 3^rd bit of the data register, D65, turns from 1 to 0.

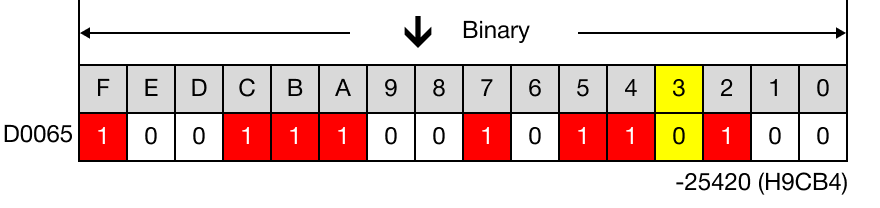

As a result, the value of the data register, D65, is now -25,420, and the 3^rd bit is now 0.
