Example - Ladder Diagram

DBCD​


The DBCD instruction converts a WORD value, S, into an 8-digit binary coded decimal (BCD) value. The conversion result is saved in an assigned 8-digit binary coded decimal (BCD) data register, D.

Ladder Diagram Example​


When the contact, M0.2, is powered ON (1), the value of the WORD data register, D10, 24,682,468, is converted into 8-digit binary-coded decimal (BCD) notation.
The value of the conversion, 610,804,840, is saved in the 8-digit binary-coded decimal data register, D13.


Memory Monitor​

DBCDP​


The DBCDP one-shot instruction converts a WORD value, S, into an 8-digit binary coded decimal (BCD) value. The conversion result is saved in an assigned 8-digit binary coded decimal (BCD) data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


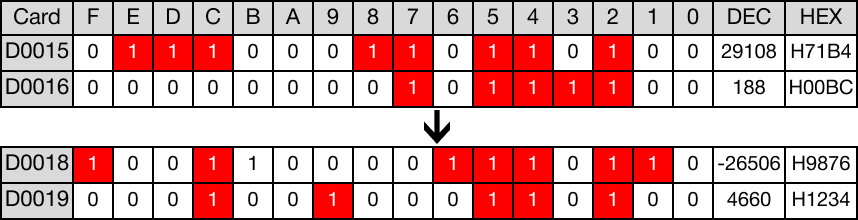

When the contact, M0.3, is powered ON (1), the value of the WORD data register, D15, 12,349,876, is converted into 8-digit binary-coded decimal (BCD) notation.
The value of the conversion, 305,436,790, is saved in the 8-digit binary-coded decimal data register, D18.


Memory Monitor​
