Example - Ladder Diagram

FLT​


The FLT instruction converts a binary WORD value, S, into a REAL value and saves the conversion in an assigned REAL data register, D.

Ladder Diagram Example​


When the contact, M3.5, is powered ON (1), the value of the WORD data register, D80, -12,345, is converted into float notation.
The value of the conversion, -12345.000000, is saved in the REAL data register, D82.


Memory Monitor​

FLTP​


The FLTP one-shot instruction converts a binary WORD value, S, into a REAL value and saves the conversion in an assigned REAL data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​

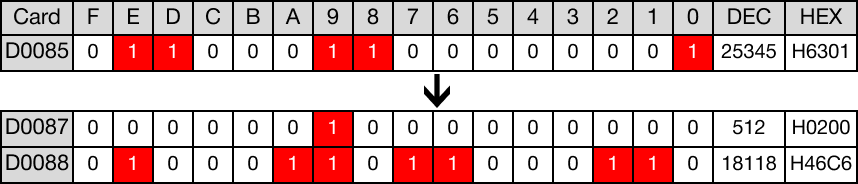

When the contact, M3.6, is powered ON (1), the value of the WORD data register, D85, 25,345, is converted into float notation.
The value of the conversion, 25,345.000000, is saved in the REAL data register, D87.


Memory Monitor​
