Example - Ladder Diagram

FLTE​


The FLTE instruction converts a LREAL value, S, into a REAL value and saves the conversion in an assigned REAL data register, D.

Ladder Diagram Example​


When the contact, M5.1, is powered ON (1), the value of the LREAL data register, D0, 1.100000, is converted into 32-bit float notation.
The value of the conversion, 1.100000, is saved in the REAL data register, D10.

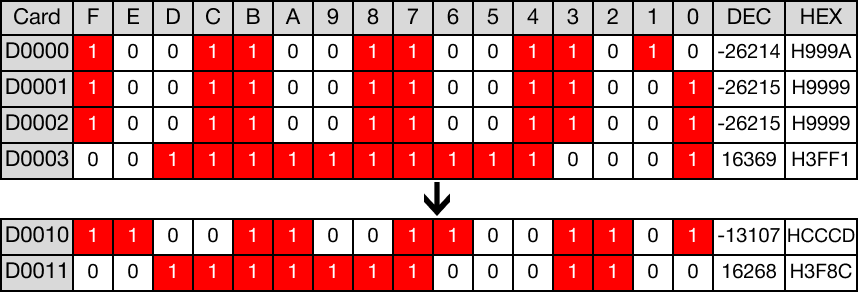

Memory Monitor​

FLTEP​


The FLTEP one-shot instruction converts a LREAL value, S, into a REAL value and saves the conversion in an assigned REAL data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M5.1, is powered ON (1), the value of the LREAL data register, D20, 99.900000, is converted into 32-bit float notation.
The value of the conversion, 99.900002, is saved in the REAL data register, D30.

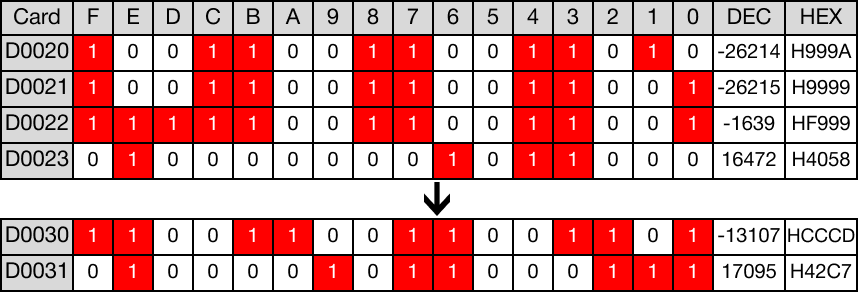

Memory Monitor​
