Example - Ladder Diagram

NEG​


The NEG instruction negates a WORD value, D, and saves the result in the same assigned WORD data register, D.

Ladder Diagram Example​

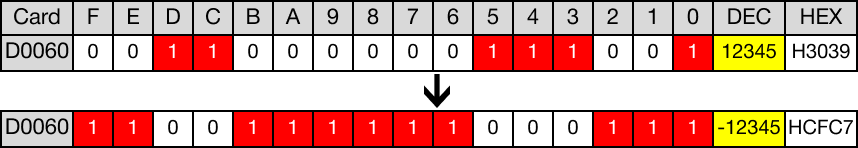

When the contact, M2.5, is powered ON (1), the value of the data register, D60, 12,345, is negated.
The value of the negation, -12,345, is saved in the same data register, D60.


Memory Monitor​

NEGP​


The NEGP one-shot instruction negates a WORD value, D, and saves the result in the same assigned WORD data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​

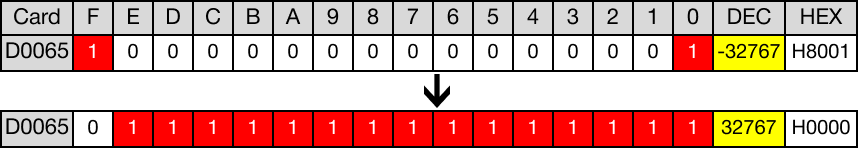

When the contact, M2.7, is powered ON (1), the value of the data register, D65, -32,767, is negated.
The value of the negation, 32,767, is saved in the same data register, D65.


Memory Monitor​
