Example - Ladder Diagram
DECO
The DECO instruction decodes the absolute value of n bits saved in the data register S and turns the corresponding bits ON starting from the data register D. All other bits in the data register D are turned OFF.
Ladder Diagram Example
When the contact, M0.0 is ON (1), the instruction decodes 27 bits of the data register, D0, and stores the result in D2.

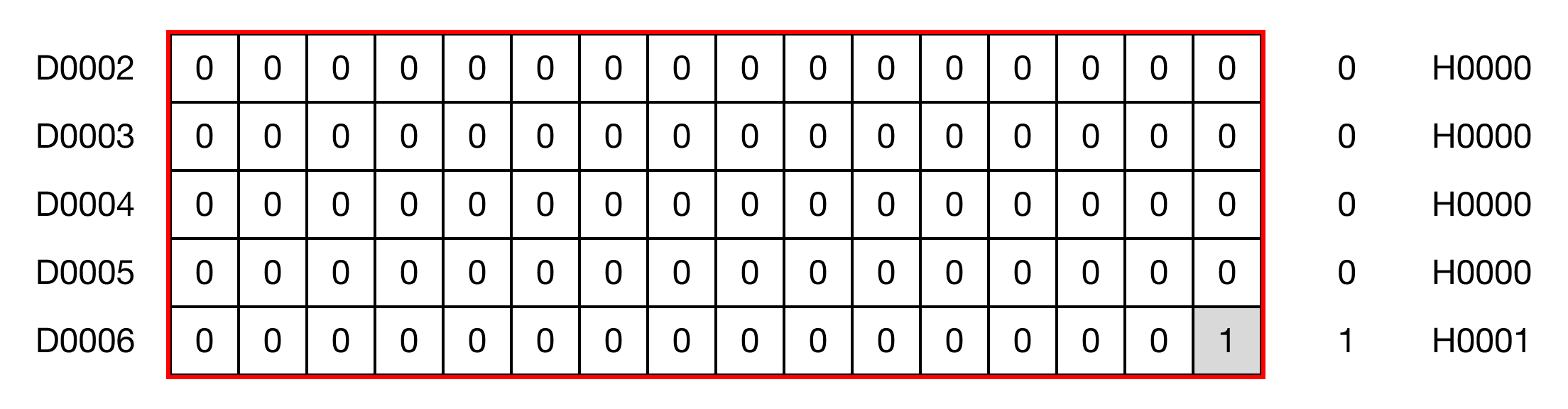

Memory Monitor
DECOP
The DECOP one-shot instruction decodes the absolute value of n bits saved in the data register S and turns the corresponding bits ON starting from the data register D. All other bits in the data register D are turned OFF.
Every time this instruction executes, it energizes the output only once.
Ladder Diagram Example
When the contact, M0.1 is ON (1), the instruction decodes 25 bits of the data register, D10, and stores the result in D12.

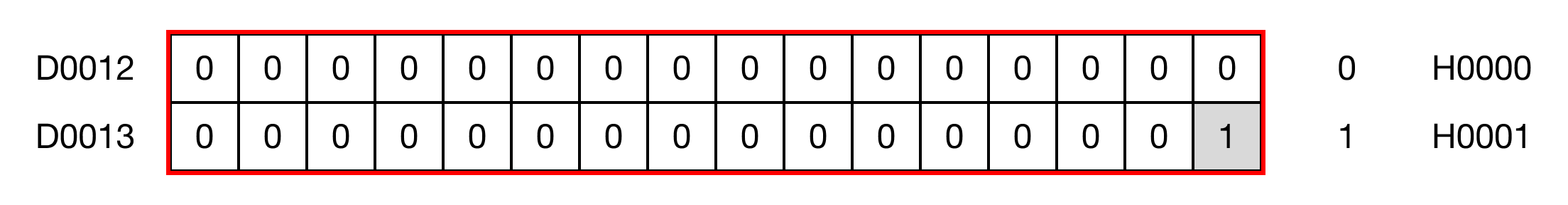

Memory Monitor
