Example - Ladder Diagram

SEG​


The SEG instruction converts a Hexadecimal value, S, into 7-segment code representation. The conversion is saved in an assigned data register, D.

Ladder Diagram Example​


When the contact, M0.0 is ON (1), the instruction converts the data register, D0, into 7-segment code.
The result is saved in D2.


Memory Monitor​

SEGP​


The SEGP one-shot instruction converts a Hexadecimal value, S, into 7-segment code representation. The conversion is saved in an assigned data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M0.1 is ON (1), the instruction converts the data register, D5, into 7-segment code.
The result is saved in D7.

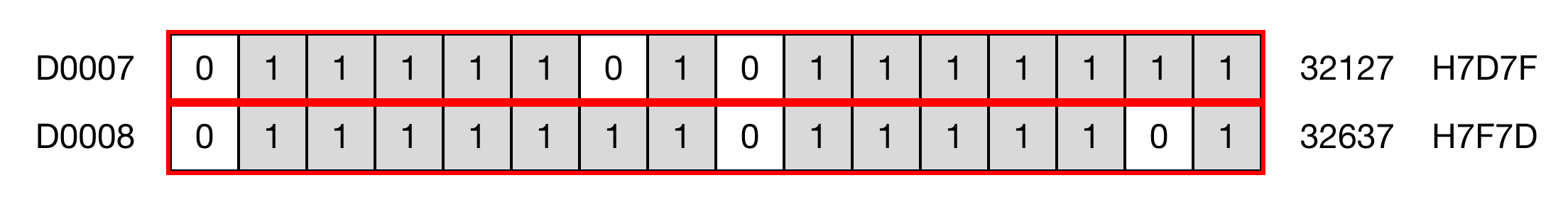

Memory Monitor​
