Example - Ladder Diagram

DIS​


The DIS instruction splits the WORD value, S, into 4 NIBBLEs and distributes each NIBBLE to n amount of WORD data registers, D.

Ladder Diagram Example​


When the contact, M0.1 is ON (1), the instruction splits D5 into 4 NIBBLEs and distributes 3 NIBBLEs to D7, D8, and D9.

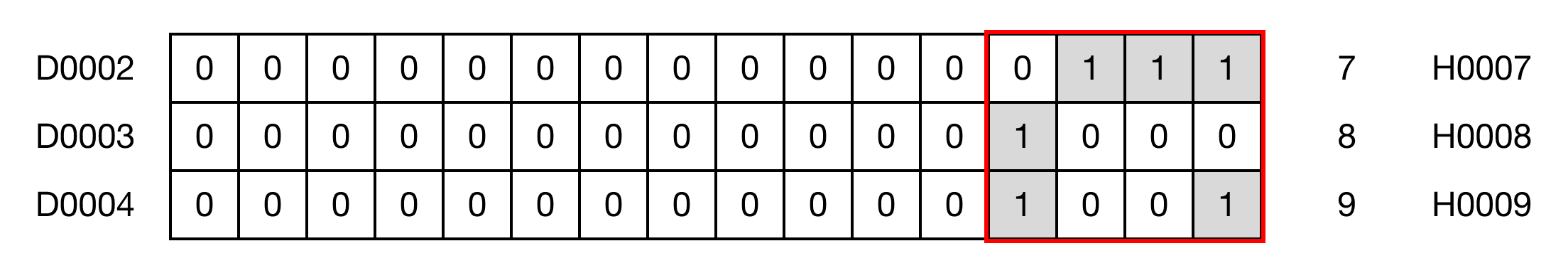

Memory Monitor​

DISP​


The DISP one-shot instruction splits the WORD value, S, into 4 NIBBLEs and distributes each NIBBLE to n amount of WORD data registers, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M0.0 is ON (1), the instruction splits D0 into 4 NIBBLEs and distributes 3 the NIBBLEs to D2, D3, and D4.

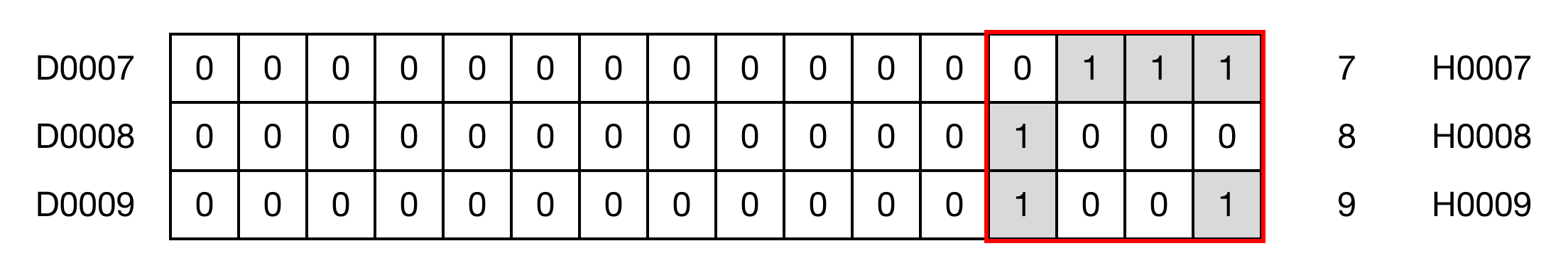

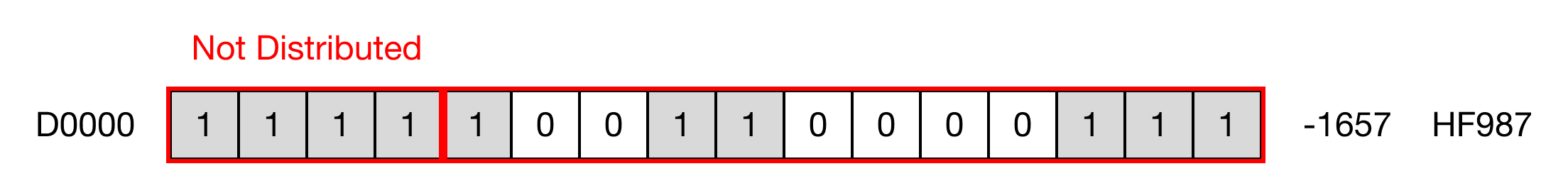

Memory Monitor​
