Example - Ladder Diagram

BMOV​


The BMOV instruction transfers the WORD value of S + n data registers to D + n WORD data registers.

Ladder Diagram Example​

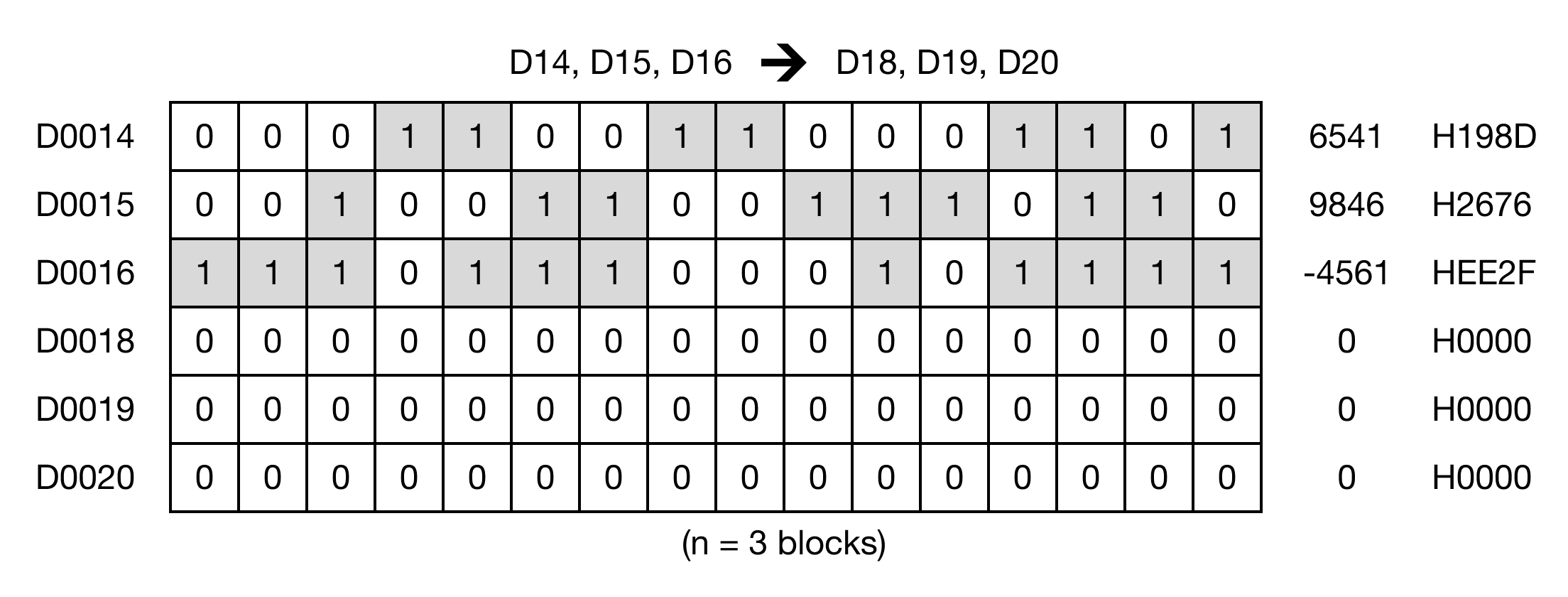

When the contact, M0.0, is powered ON (1), the instruction copies the values of the 3 data registers, D14, D15, and D16, into the data registers, D18, D19, and D20.


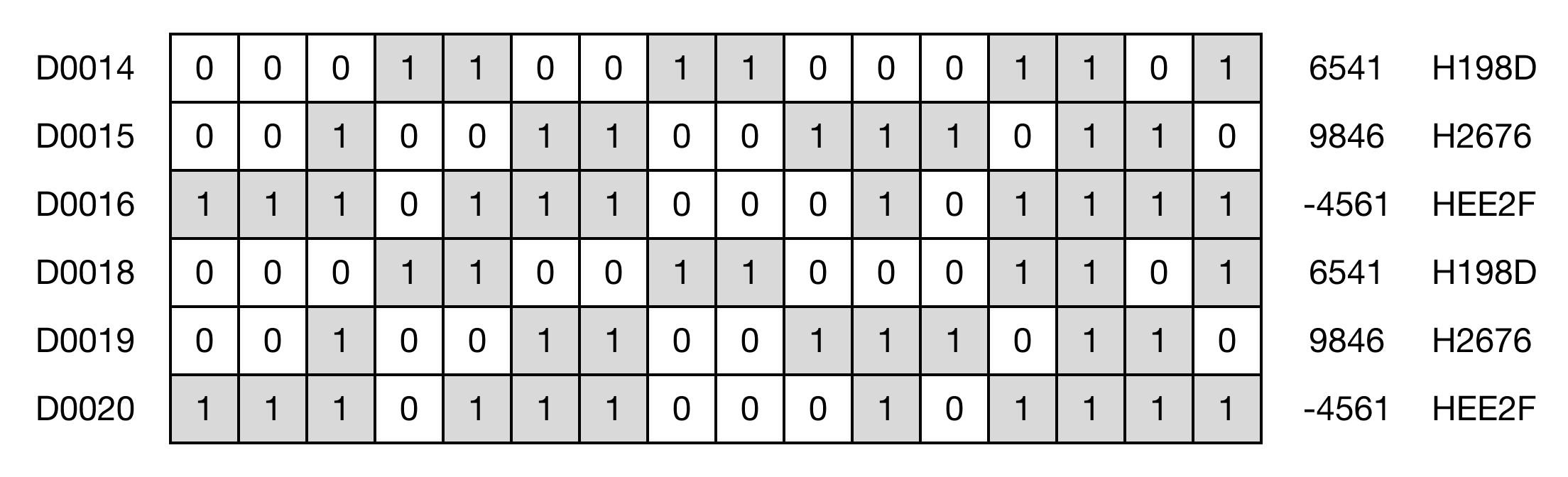

Memory Monitor​

BMOVP​


The BMOVP one-shot instruction transfers the WORD value of S + n data registers to D + n WORD data registers.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​

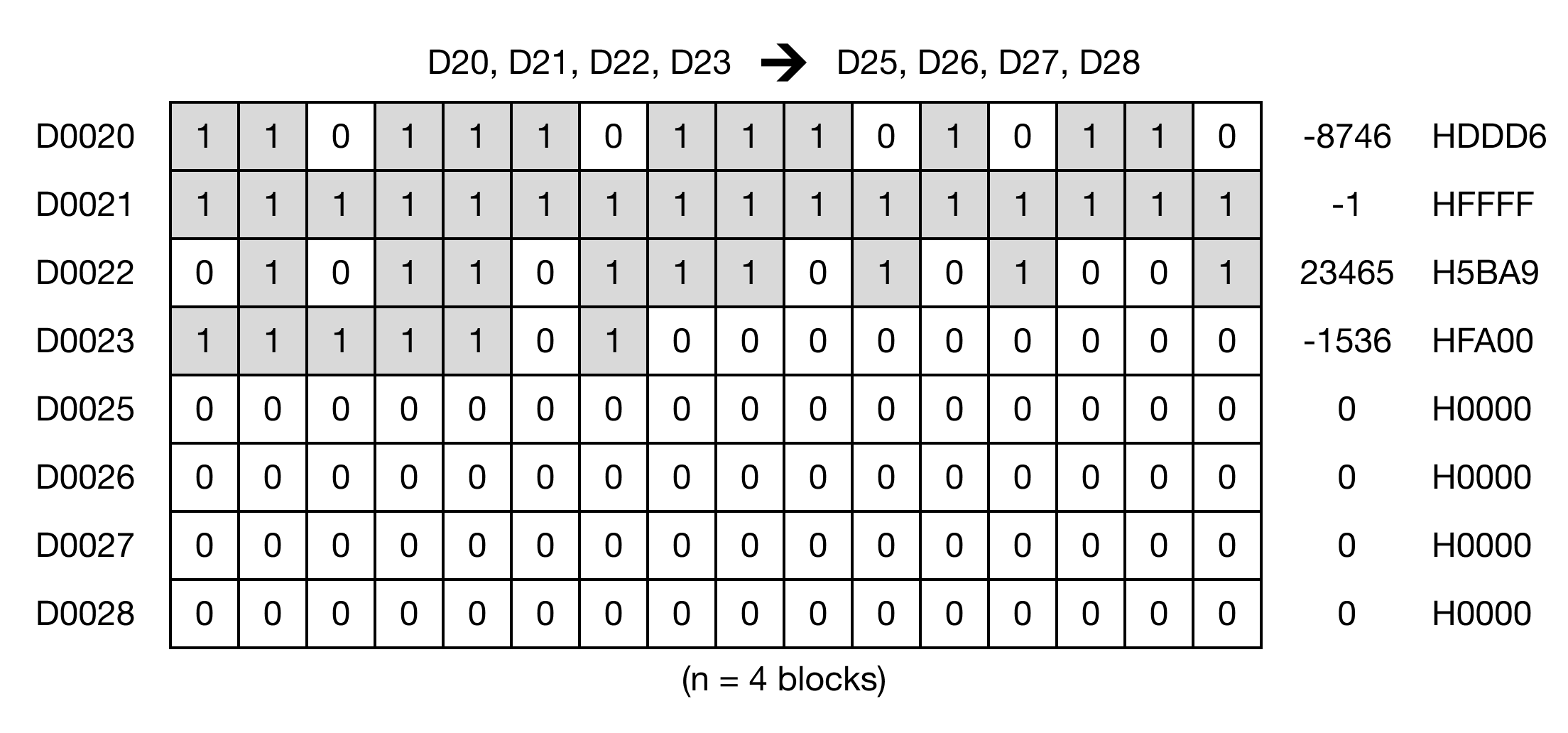

When the contact, M0.1, is powered ON (1), the instruction copies the values of the 4 data registers, D20, D21, D22, and D23, into the data registers, D25, D26, D27, and D28.

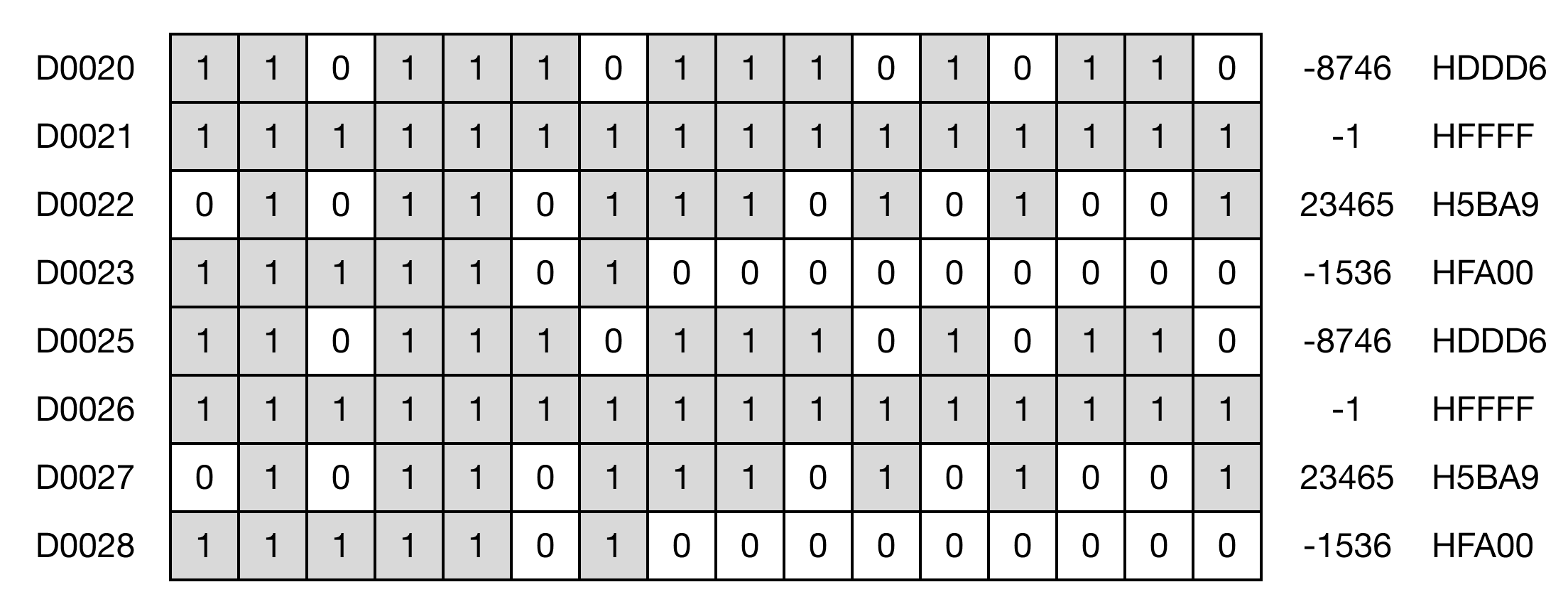

Memory Monitor​
