Example - Ladder Diagram

DMOV​


The DMOV instruction will transfer the DWORD value, S, to an assigned DWORD data register, D.

Ladder Diagram Example​


When the contact, M0.0 is ON (1), the instruction copies the value in the DWORD data register, D8, into the data register, D10.

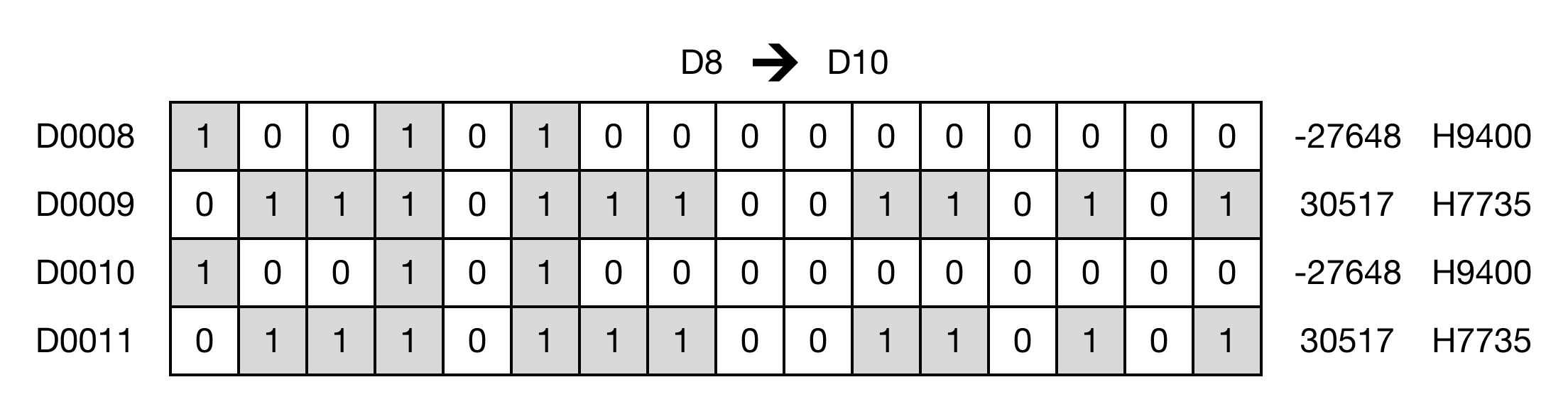

Memory Monitor​

DMOVP​


The DMOVP one-shot instruction will transfer the DWORD value, S, to an assigned DWORD data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M0.1 is ON (1), the instruction copies the value of the constant DWORD, into the data register, D12.

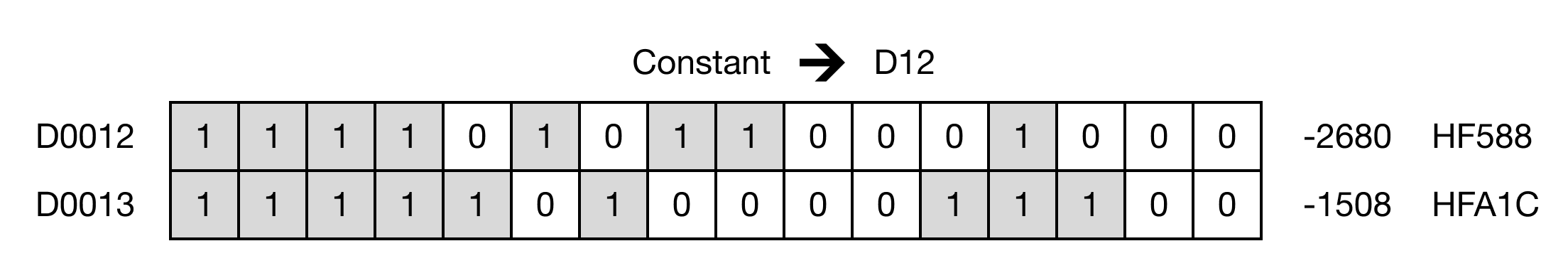

Memory Monitor​
