The EMOV instruction will transfer the REAL value, S, to an assigned REAL data register, D.

Ladder Diagram Example​


When the contact, M0.0, is powered ON (1), the instruction copies the value in the REAL data register, D30, into the data register, D32.

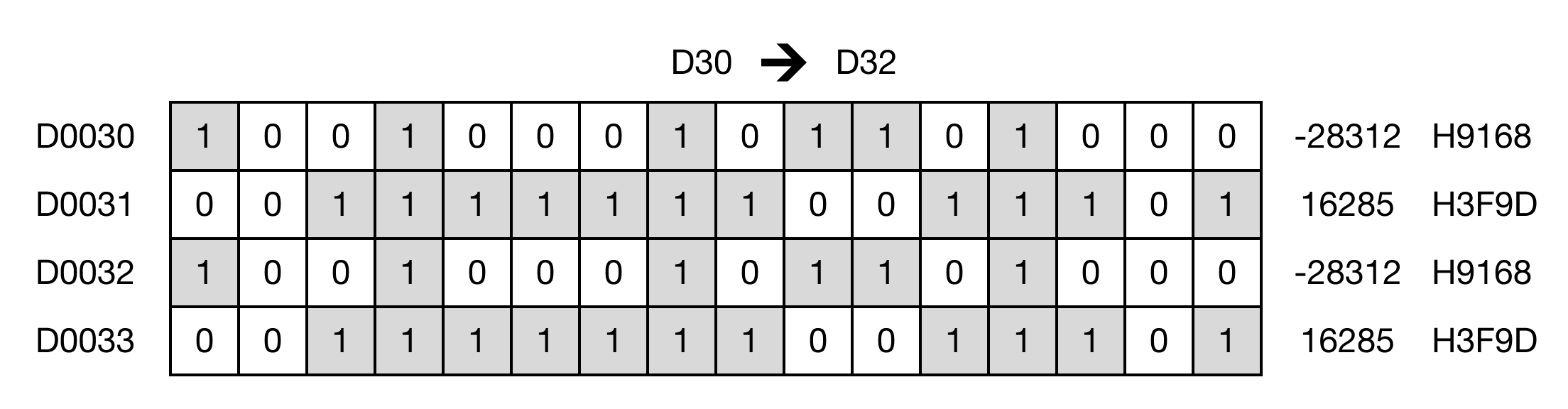

Memory Monitor​

EMOVP​


The EMOVP one-shot instruction will transfer the REAL value, S, to an assigned REAL data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M0.1, is powered ON (1), the instruction copies the value in the REAL data register, D34, into the data register, D36.

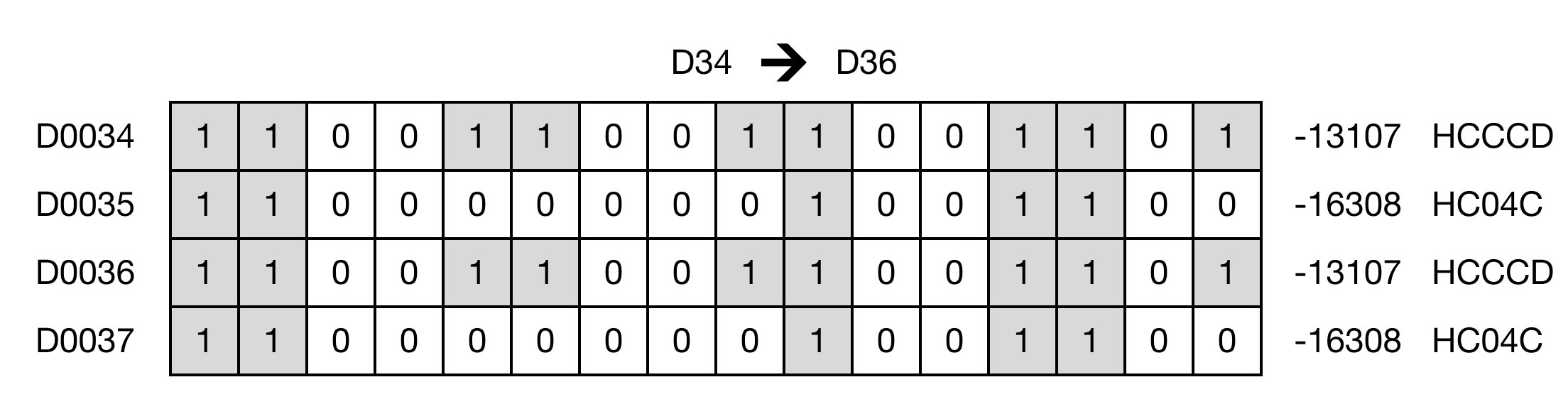

Memory Monitor​
