Example - Ladder Diagram

FMOV​


The FMOV instruction transfers the WORD value, S, to D + n WORD data registers.

Ladder Diagram Example​


When the contact, M0.0, is powered ON (1), the instruction copies the value in the data register, D38, into 3 data registers, D40, D41, and D42.


Memory Monitor​

FMOVP​


The FMOVP one-shot instruction transfers the WORD value, S, to D + n WORD data registers.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​

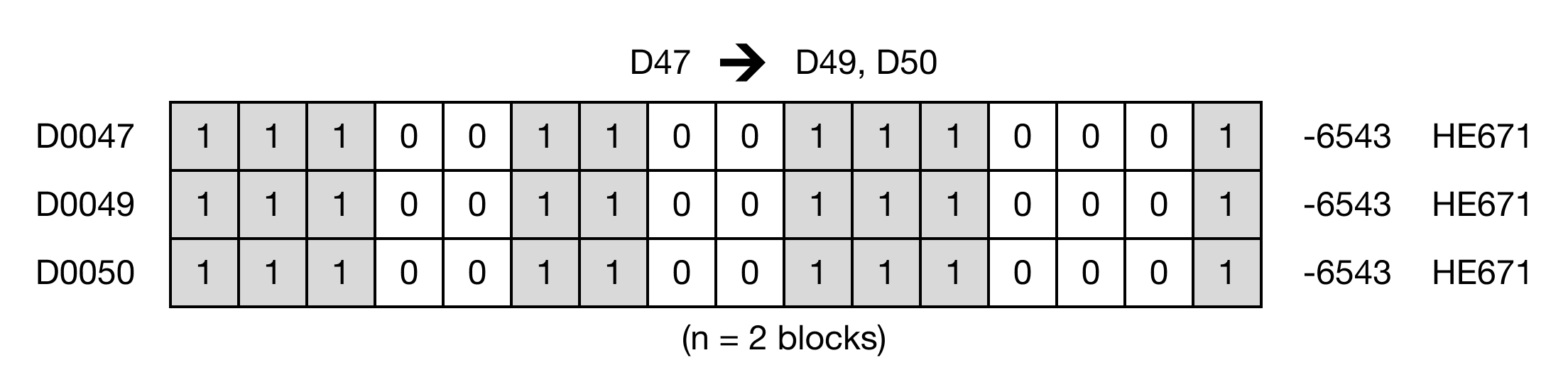

When the contact, M0.1, is powered ON (1), the instruction copies the value in the data register, D47, into 2 data registers, D49 and D50.


Memory Monitor​
