Example - Ladder Diagram

MOV​


The MOV instruction will transfer the WORD value, S, to an assigned WORD data register, D.

Ladder Diagram Example​


When the contact, M0.0 is ON (1), the instruction copies the value in the WORD data register, D0, into the data register, D2.


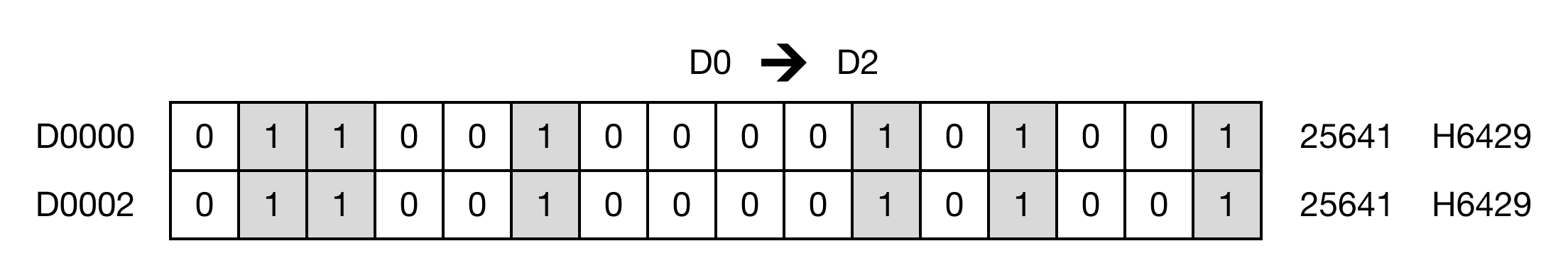

Memory Monitor​

MOVP​


The MOVP one-shot instruction will transfer the WORD value, S, to an assigned WORD data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M0.1 is ON (1), the instruction copies the value in the WORD data register, D4, into the data register, D6.

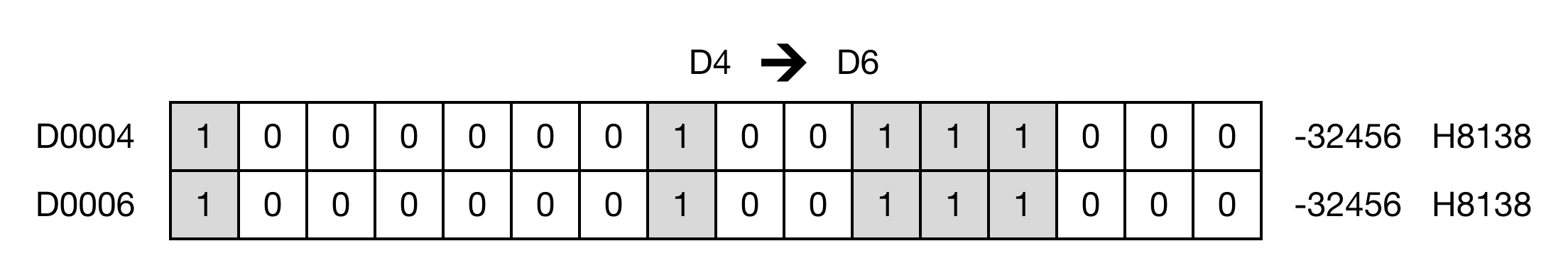

Memory Monitor​
