Example - Ladder Diagram

WBMOV​


The WBMOV instruction transfers 1 ~ 15 bits of a WORD value, S, to 1 ~ 15 bits of an assigned WORD data register, D.

Ladder Diagram Example​


When the contact, M0.0, is powered ON (1), the instruction transfers the bits of the data register, D50, into the data register, D53.

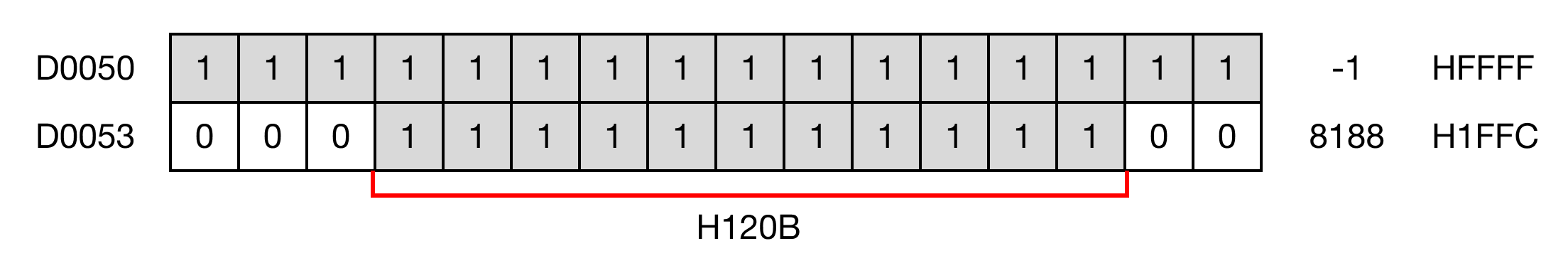

Memory Monitor​

WBMOVP​


The WBMOVP one-shot instruction transfers 1 ~ 15 bits of a WORD value, S, to 1 ~ 15 bits of an assigned WORD data register, D.
Every time this instruction executes, it energizes the output only once.

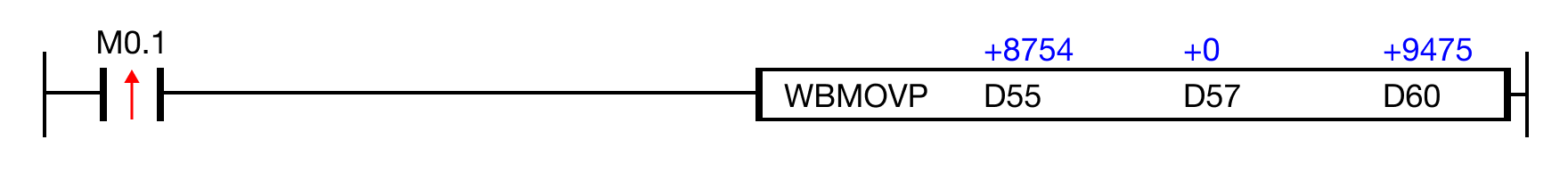

Ladder Diagram Example​


When the contact, M0.1, is powered ON (1), the instruction transfers the bits of the data register, D55, into the data register, D57.

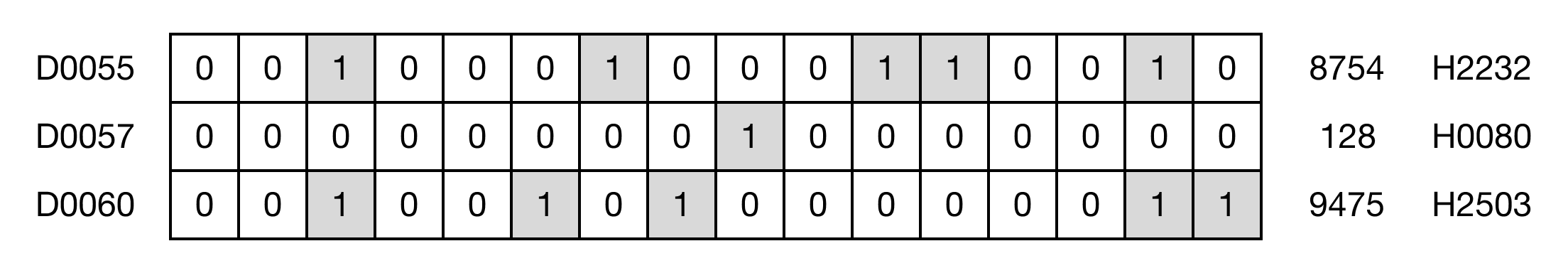

Memory Monitor​
