Example - Ladder Diagram

DEG Example

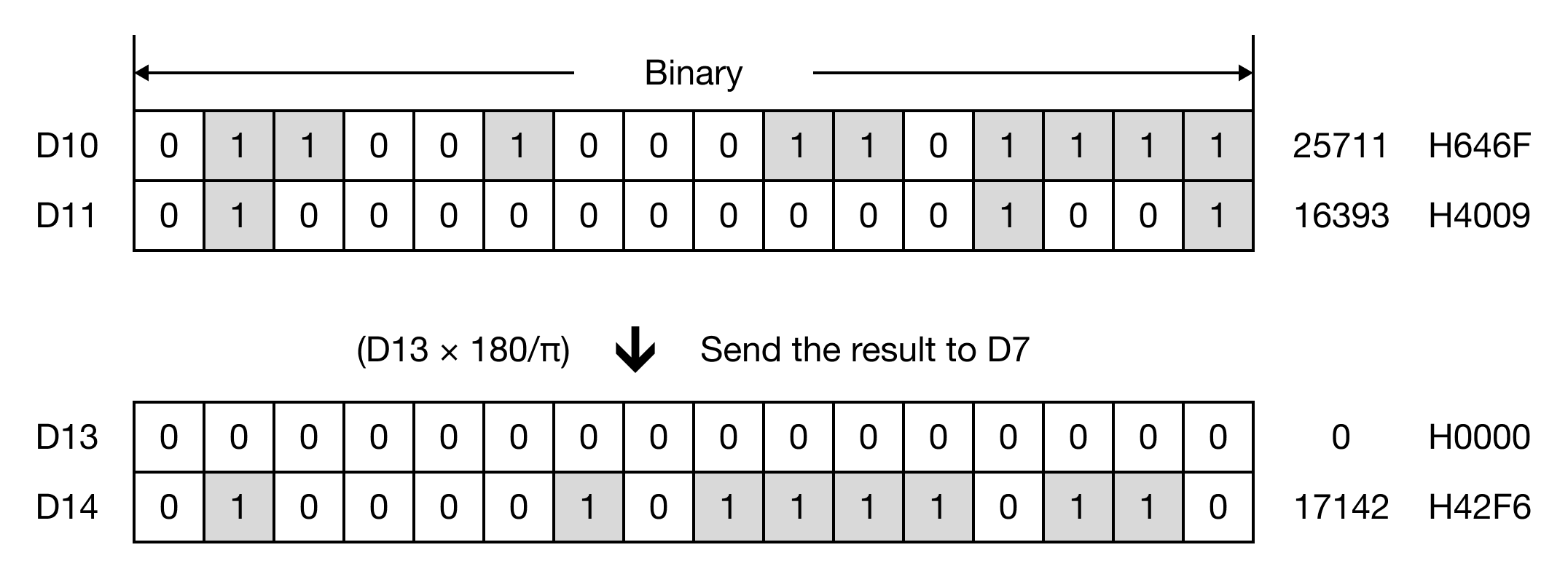

The DEG instruction converts a REAL radian value, S, into degrees and saves the result in an assigned REAL data register, D.

Ladder Diagram Example

When the contact, M0.2, is ON (1), the instruction converts the degree value, 2.146755, into the resulting radian value, 123.000000.

Memory Monitor

DEGP

The DEGP one-shot instruction converts a REAL radian value, S, into degrees and saves the result in an assigned REAL data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example

When the contact, M0.3, is ON (1), the instruction converts the degree value, -1.234560, into the resulting radian value, -70.735077.

Memory Monitor
