RAD​


The RAD instruction converts a REAL degree value, S, into radians and saves the result in an assigned REAL data register D.

Ladder Diagram Example​


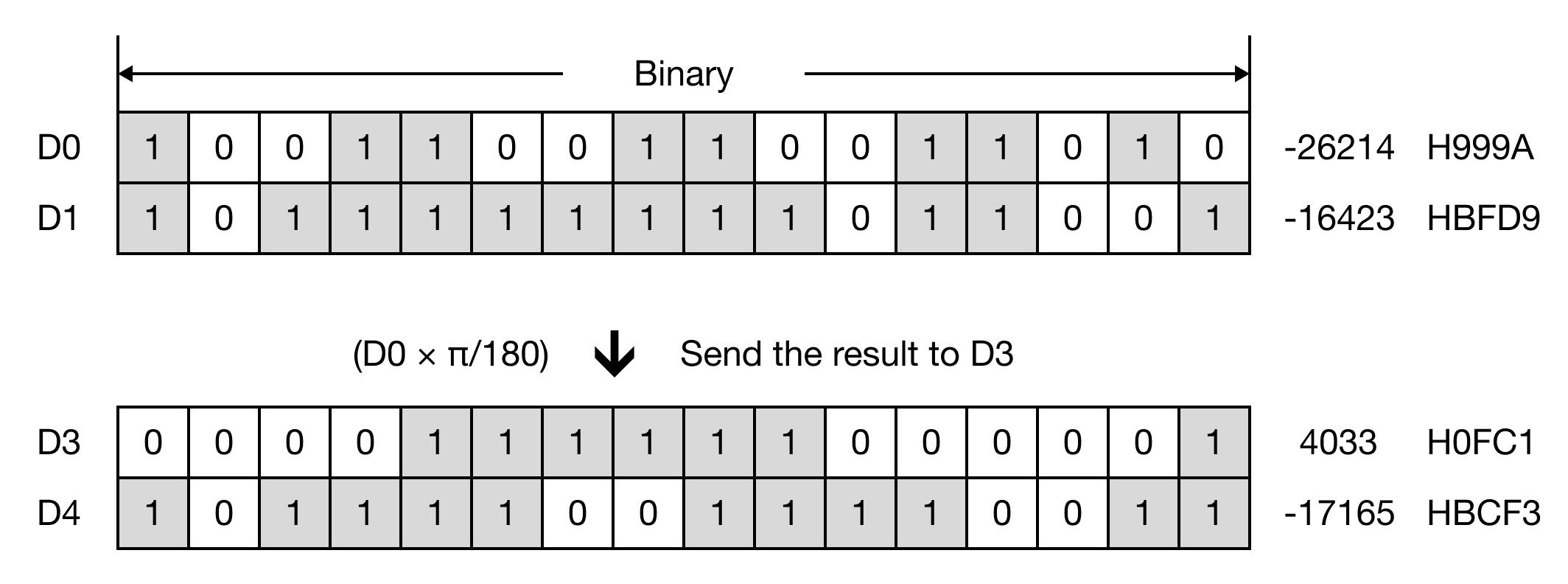

When the contact, M0.0, is ON (1), the instruction converts the degree value, -1.700000, into the resulting radian value, -0.029671.


Memory Monitor​

RADP​


The RADP one-shot instruction converts a REAL degree value, S, into radians and saves the result in an assigned REAL data register D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


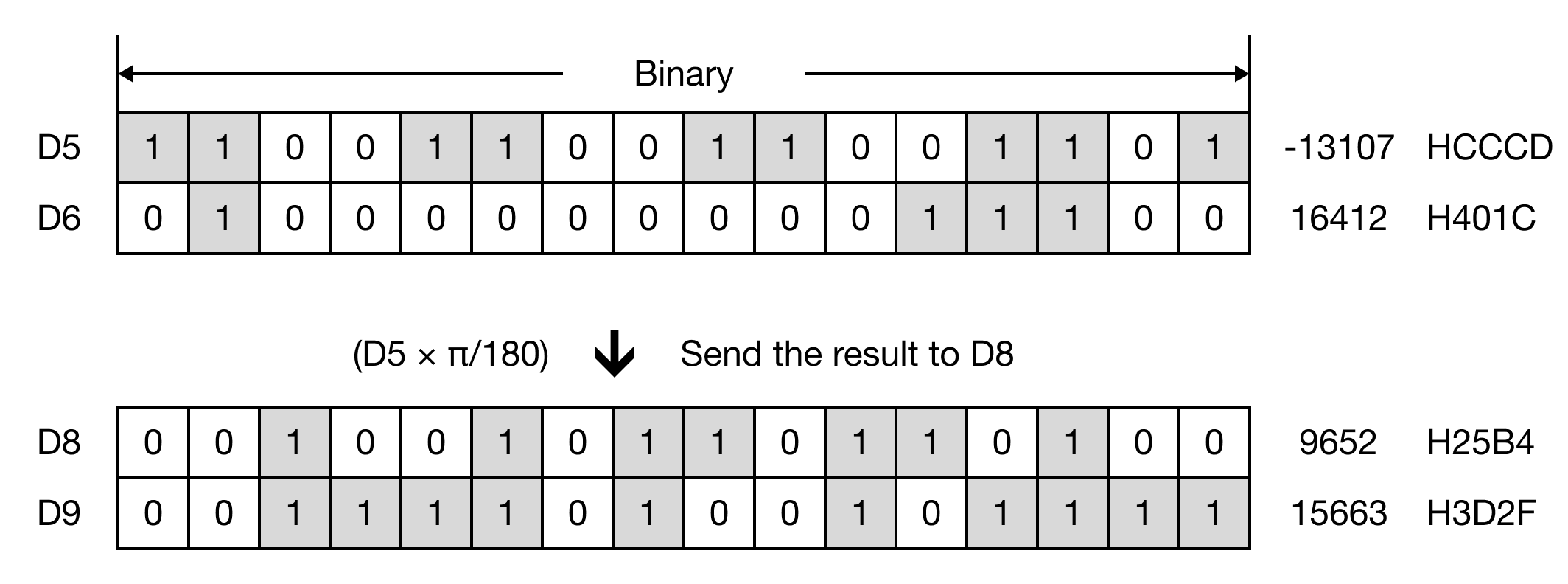

When the contact, M0.1, is ON (1), the instruction converts the degree value, 2.450000, into the resulting radian value, 0.042761.


Memory Monitor​
