Example - Ladder Diagram

BDSQR​


The BDSQR instruction calculates the square root of the 8-digit binary coded decimal (BCD) value, S, and saves the result in an assigned 8-digit binary coded decimal (BCD) data register, D.

Ladder Diagram Example​


When the contact, M1.5, is ON (1), the instruction takes the square root of the value, H00547813, into the resulting radian value, H14390740.


Memory Monitor​

BDSQRP​


The BDSQRP one-shot instruction calculates the square root of the 8-digit binary coded decimal (BCD) value, S, and saves the result in an assigned 8-digit binary coded decimal (BCD) data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​

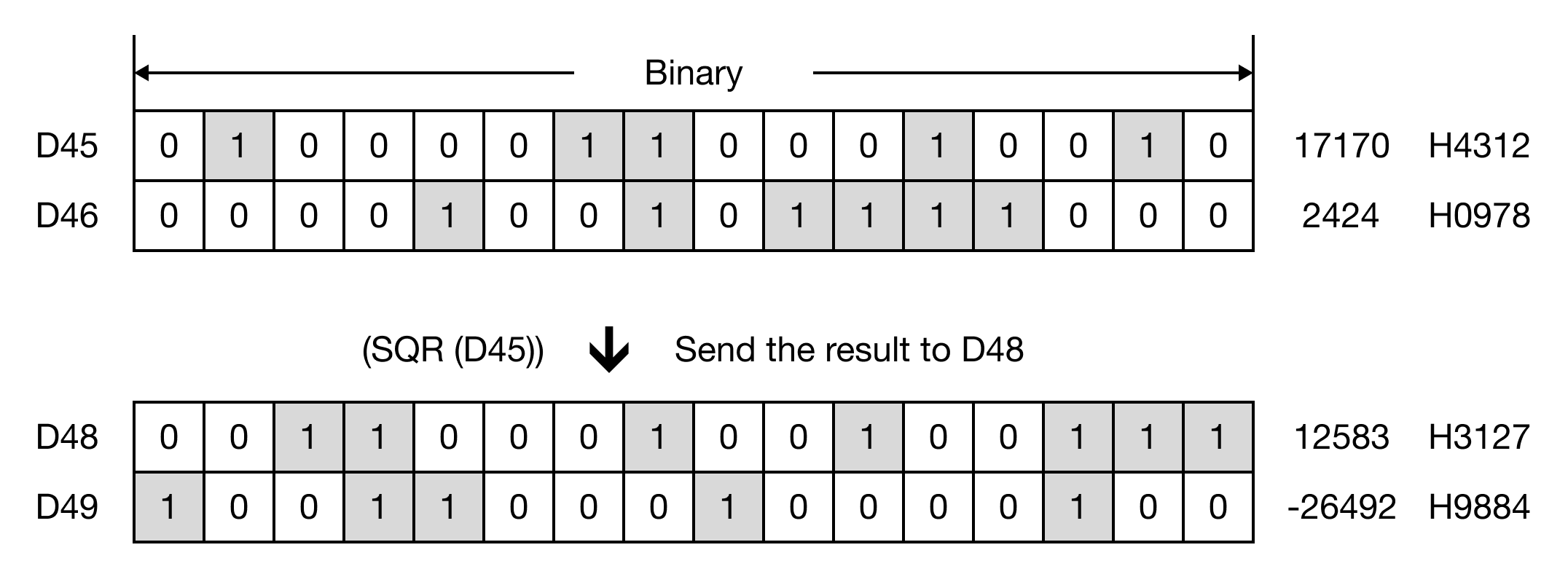

When the contact, M1.6, is ON (1), the instruction takes the square root of the value, H09784312, into the resulting radian value, H98843127.


Memory Monitor​
