Example - Ladder Diagram

BASIN​


The BASIN instruction calculates the arcsine, or inverse sine, of the 4-digit binary coded decimal (BCD) operand, S, and saves the result in an assigned 8-digit binary coded decimal (BCD) data register, D.

Ladder Diagram Example​


When the contact, M1.1, is ON (1), the instruction executes asin(H0000) and saves the result, H00000007.

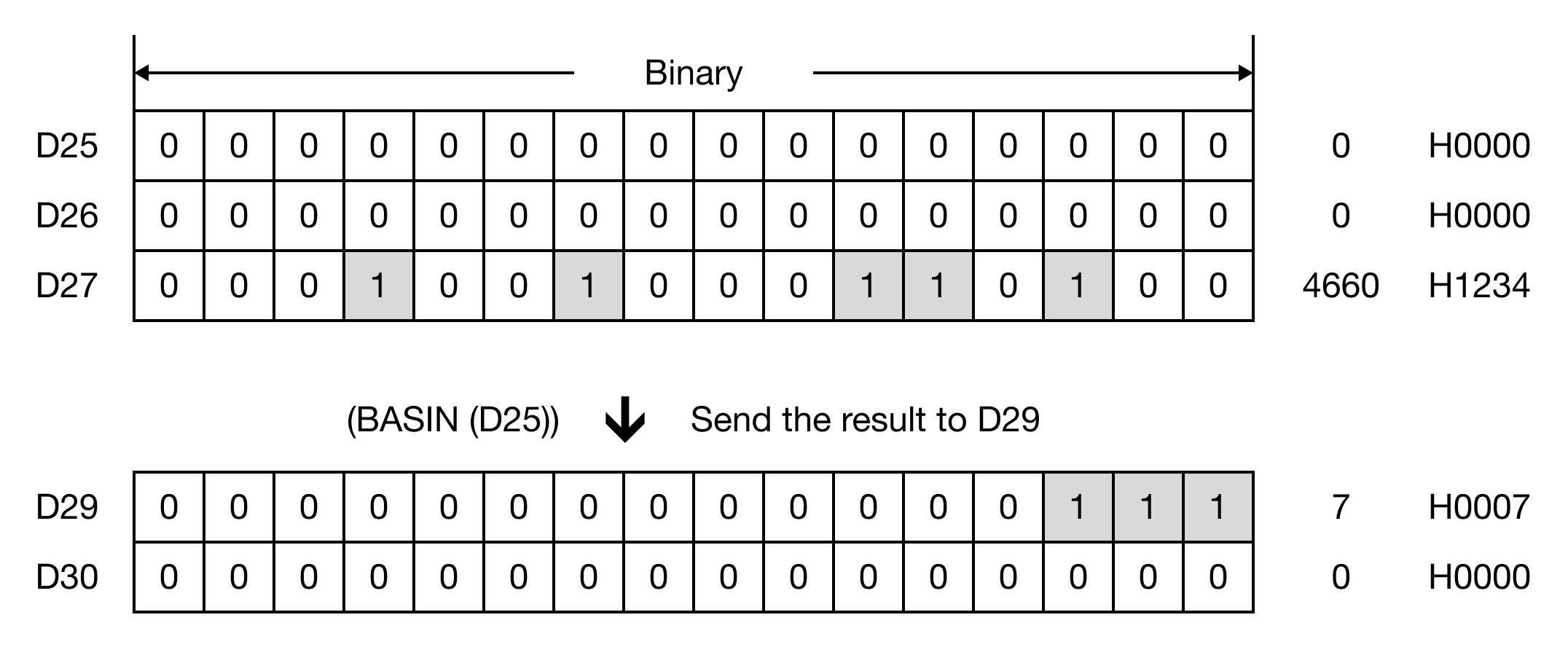

Memory Monitor​

BASINP​


The BASINP one-shot instruction calculates the arcsine, or inverse sine, of the 4-digit binary coded decimal (BCD) operand, S, and saves the result in an assigned 8-digit binary coded decimal (BCD) data register, D.
Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example​


When the contact, M1.2, is ON (1), the instruction executes asin(H0001) and saves the result, H00000326.

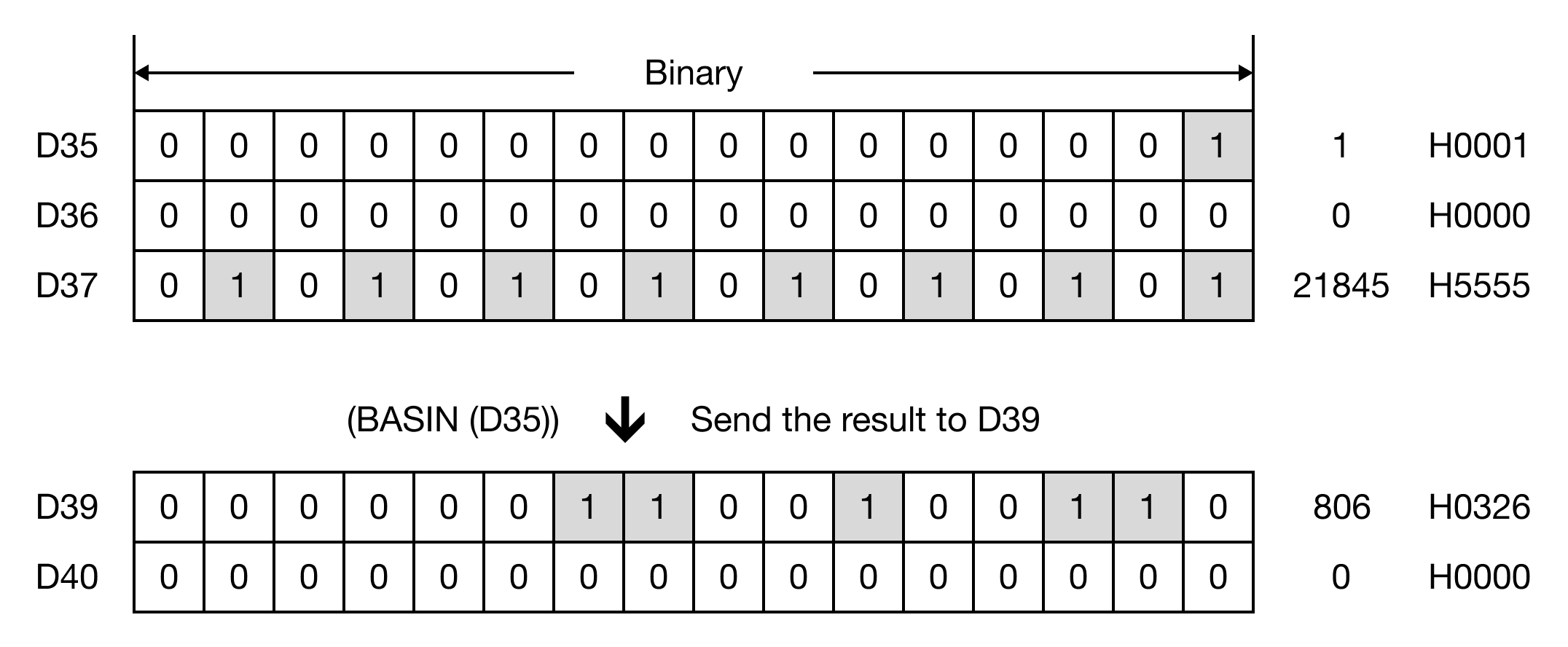

Memory Monitor​
