Example - Ladder Diagram

BREAK​


The BREAK instruction escapes from a FOR ~ NEXT instruction block during execution.

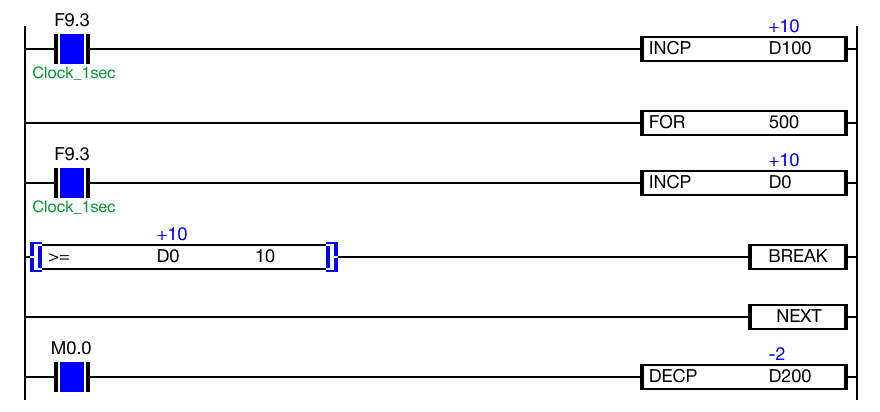

Ladder Diagram Example​


When the data register, D0, is greater than or equal to 10, the BREAK instruction will energize and decrease the data register, D200.


BREAKP​


The BREAKP one-shot instruction escapes from a FOR ~ NEXT instruction block during execution.
Every time this instruction executes, it energizes the output only once.

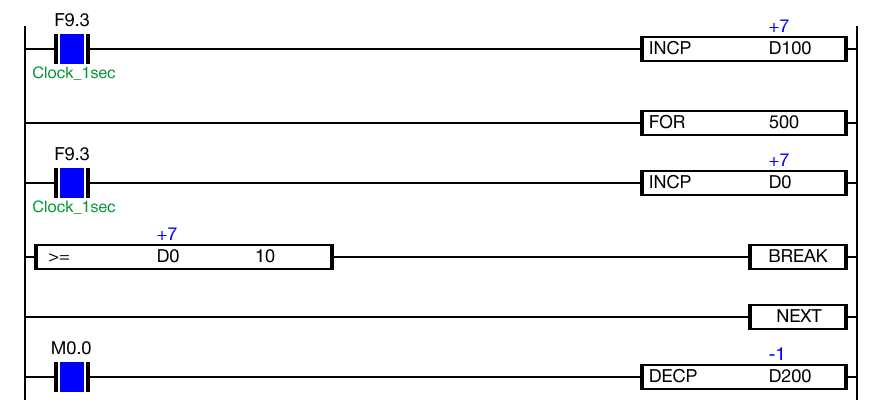

Ladder Diagram Example​


When the data register, D0, is greater than or equal to 10, the BREAK instruction will energize and decrease the data register, D200.
