Example - Ladder Diagram

END

The END instruction ends a scan program.

Ladder Diagram

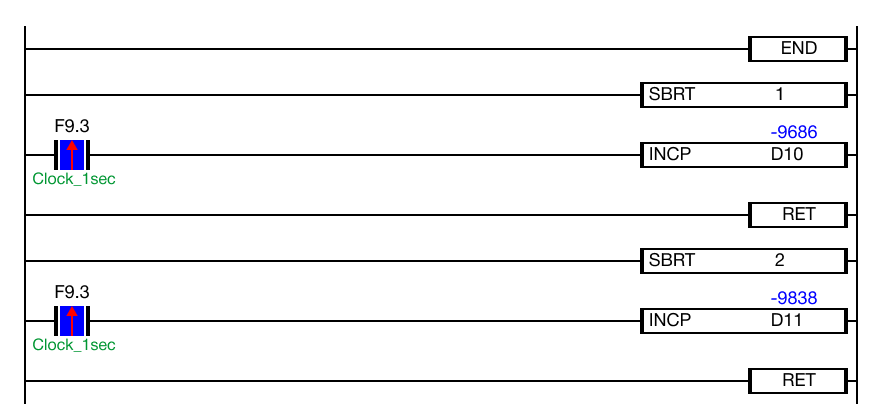

Example 1

Any existing subroutine program must be placed after the END instruction.

Example 2

The END instruction must be used at least once in the any scan program.
