Example - Ladder Diagram

D<>​

The D<> instruction compares a DWORD value, S1, to another DWORD value, S2, and executes if S1 is not equal to S2.

LDD Execution Condition​


When the result of the instruction execution of the expression D14 ≠ D16 (789,456 ≠ 789,456) is FALSE, the coil, Y5.3, is deenergized.



When the result of the instruction execution of the expression D14 ≠ D16 (123,456 ≠ 789,456) is TRUE, the coil, Y5.3, is energized.

Memory Monitor​

ANDD Execution Condition​

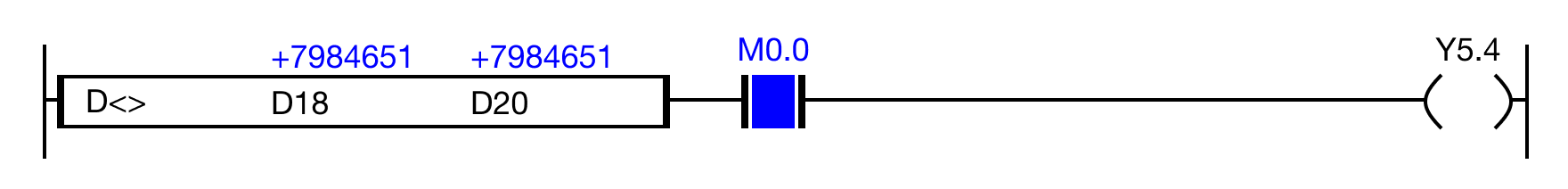

When the result of the instruction execution of the expression D18 ≠ D20 (7,894,561 ≠ 7,894,561) is FALSE, and the contact, M0.0 is ON (1), the coil, Y5.4, is deenergized.



When the result of the instruction execution of the expression D18 ≠ D20 (7,894,561 ≠ -7,894,561) is TRUE, and the contact, M0.0 is ON (1), the coil, Y5.4, is energized.

Memory Monitor​

ORD Execution Condition​


When the result of the instruction execution of the expression D22 ≠ D24 (1,254,954 ≠ 1,254,954) is FALSE, or the contact, M0.1 is ON (1), the coil, Y5.5, is energized.

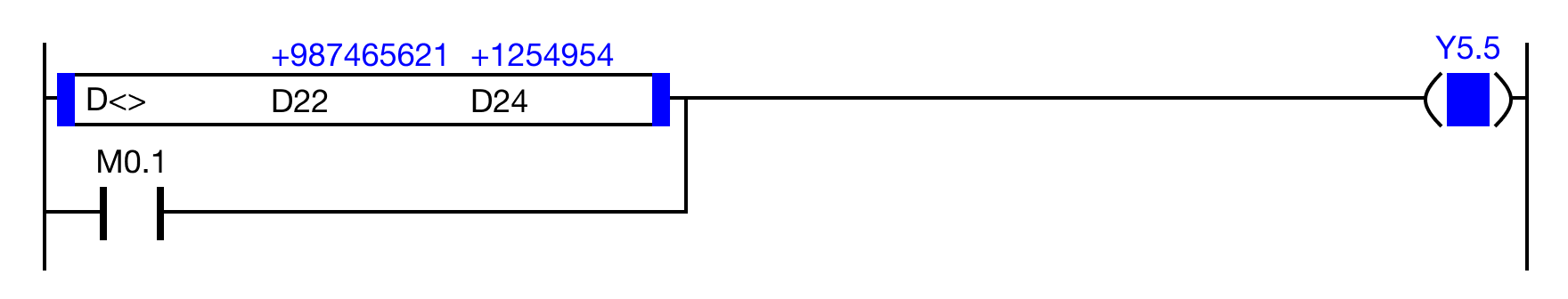

When the result of the instruction execution of the expression D22 ≠ D24 (987,465,621 ≠ 1,254,954) is TRUE, and the contact, M0.1 is OFF (0), the coil, Y5.5, is energized.

Memory Monitor​
