CM3 DA Module Wiring Guide

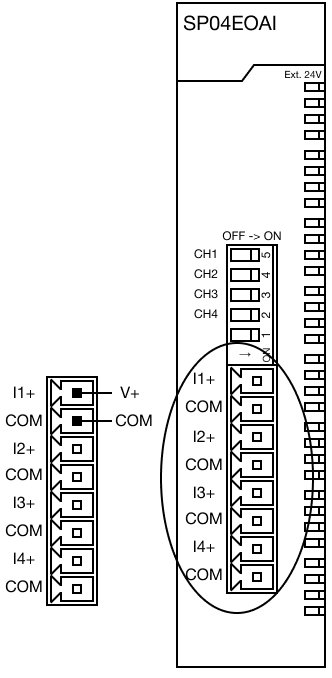

CM3-SP04EOAI Current Wiring
| CM3-SP04EOAI Current Wiring Guide | |||
|---|---|---|---|
| Channel | Positive (+) Terminal | Negative (-) Terminal | Connection |
| Channel 1 | Terminal 1 | Terminal 2 | - |
| Channel 2 | Terminal 3 | Terminal 4 | - |
| Channel 3 | Terminal 5 | Terminal 6 | - |
| Channel 4 | Terminal 7 | Terminal 8 | - |
| 24V External | Connection on bottom of module | ||
CM3-SP04EOAV Voltage Wiring
| CM3-SP04EOAV Voltage Wiring Guide | |||
|---|---|---|---|
| Channel | Positive (+) Terminal | Negative (-) Terminal | |
| Channel 1 | Terminal 1 | Terminal 2 | |
| Channel 2 | Terminal 3 | Terminal 4 | |
| Channel 3 | Terminal 5 | Terminal 6 | |
| Channel 4 | Terminal 7 | Terminal 8 | |
| 24V External | Connection on bottom of module | ||
