Micro-S CPU Series I/O Pin Map

Micro-S CPU I/O Pin Map​

The following are I/O pin maps for the CM3-SB16MDTF, CM3-SB16MDCF, CM3-SB32MDTF, CM3-SP32MDCF, and the CM3-SB32MDRF.

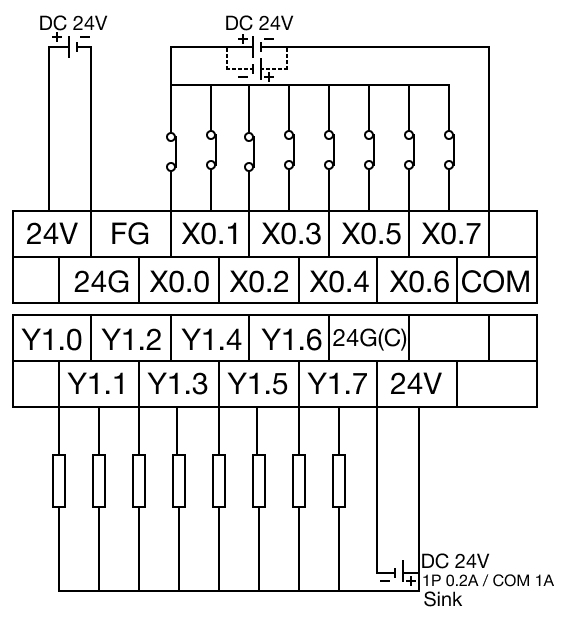

CM3-SB16MDTF​


Sinking Output

CM3-SB16MDCF​


Sourcing Output

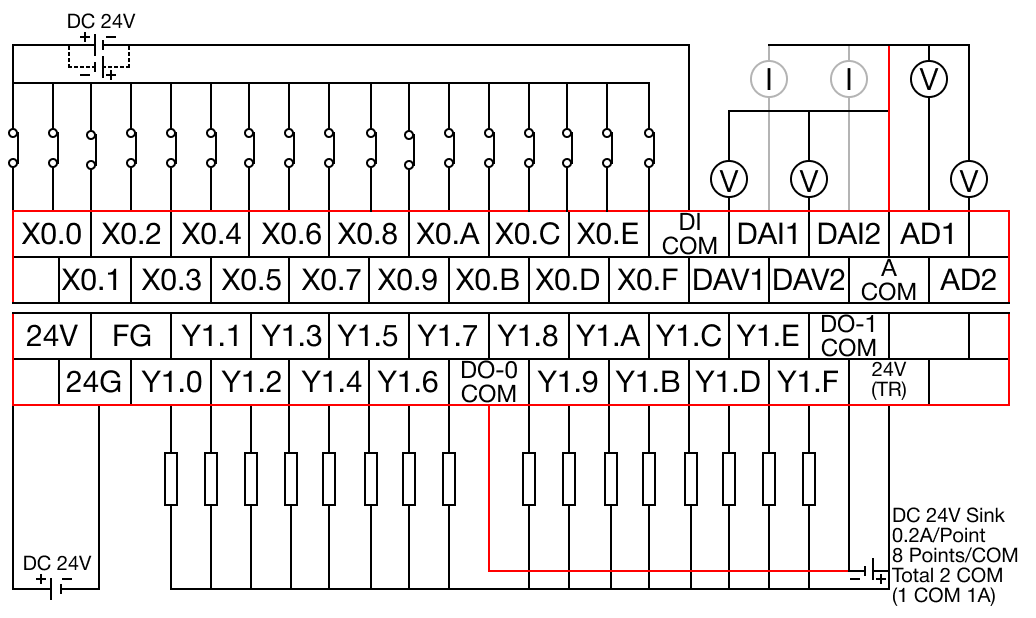

CM3-SB32MDTF​


Sinking Output

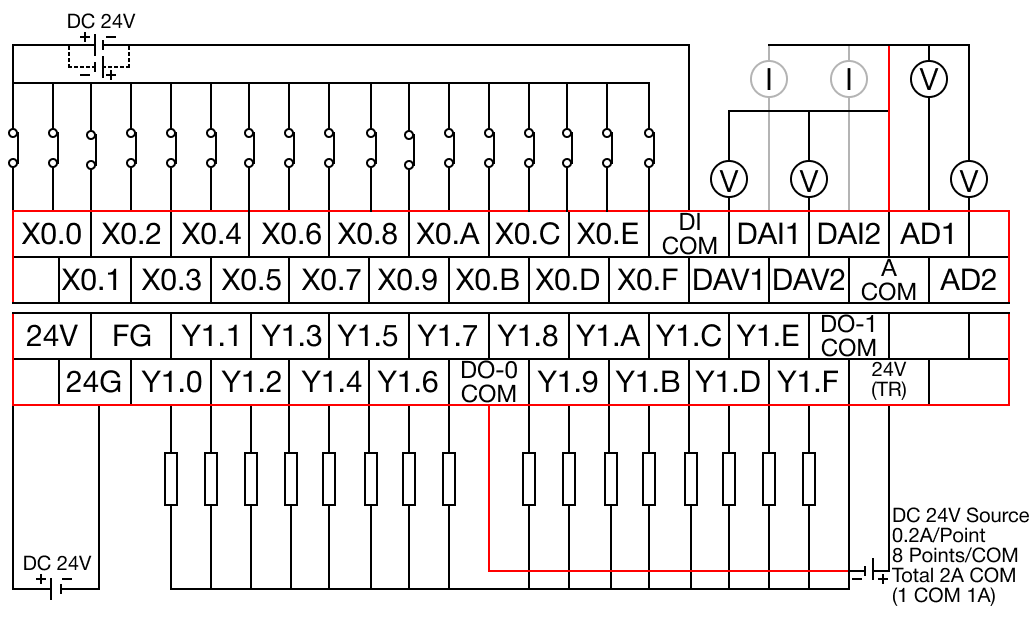

CM3-SB32MDCF​


Sourcing Output

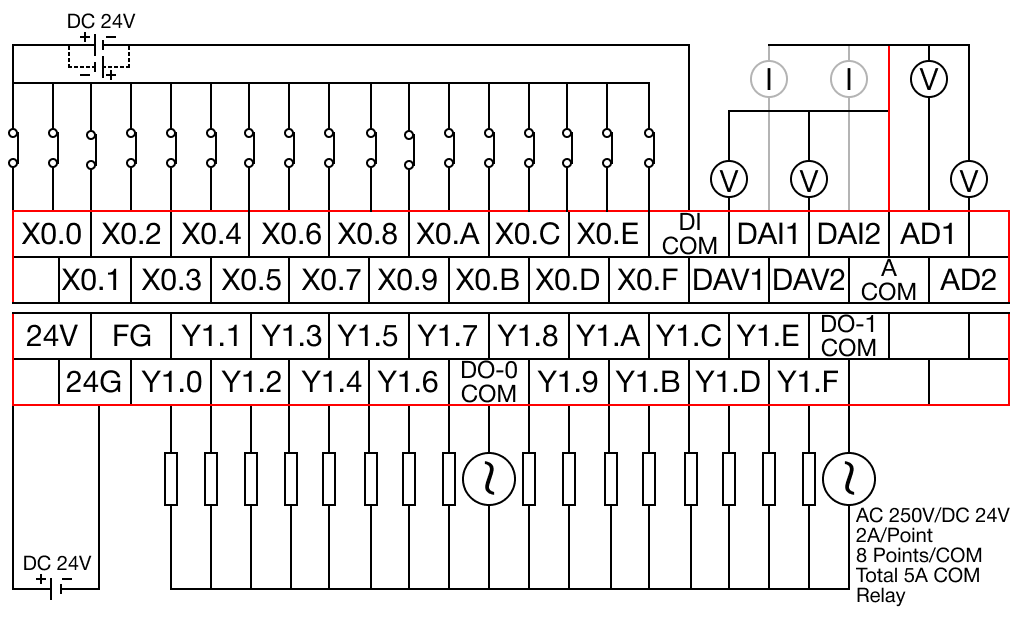

CM3-SB32MDRF​


Relay Output
