Micro-S CPU Series Features

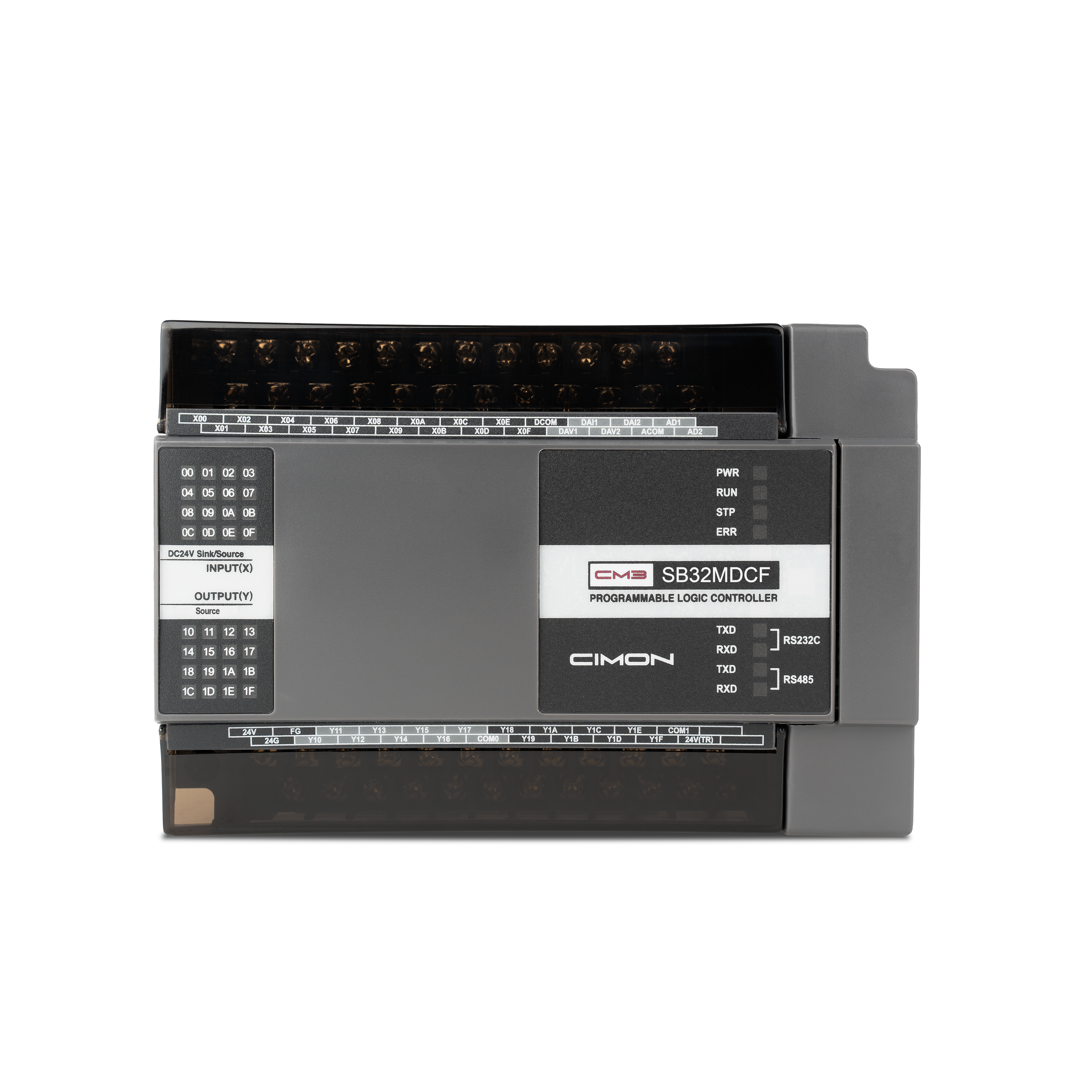

Micro-S
The Micro-S CPU Module provides robust performance and advanced functionalities designed for industrial automation systems. Despite its compact form factor, the Micro-S delivers the capabilities often found in larger, more expensive systems, making it an efficient and cost-effective choice for small to medium-sized automation tasks.
This module supports several built-in features, such as high-speed counters, analog and digital I/O, and advanced communication protocols. Its design ensures that it can handle demanding tasks while being easy to program and maintain. Whether for new installations or retrofits, the Micro-S CPU Module offers flexibility, reliability, and performance without compromise.
Features
- Five different output types depending on the module:
- Sinking outputs
- Sourcing outputs
- Relay outputs
- TR Output (DC 24V)
- Analog current outputs
- Analog voltage outputs
- 300ns/step processing time.
- 32 points of digital input and output:
- 16 points of digital input
- 16 points of digital output
- 4 points of analog input and output depending on the module:
- 2 points of analog input
- 2 points of analog output.
- Sufficient memory for 10,000 steps.
- 10,000 WORDs of data memory.
- Compact size:
- 90mm x 93mm x 76mm
- 247g
- 3 built-in communication ports:
- RS-232(C)
- RS-422/RS-485
- Ethernet
- USB loader port.
- Built-in 20,000pps 2-channel high-speed counter.
- Built-in 100,000pps 2-axes pulse output (positioning).
- Built-in 32 loop PID control.
- Floating-point arithmetic.
- Run time editing:
- Ladder logic or instruction list languages.
- Built-in flash memory.
Built-in Functions
Serial Communication Specifications
| Built-in Serial Communication Specifications | |||
|---|---|---|---|
| Specification | Channel 1 | Channel 2 | |
| RS-232(C) | RS-485 | ||
| Communication Mode | CIMON HMI Protocol | ✓ | |
| CICON Protocol | ✓ | ✓ | |
| Protocol Program | - | - | |
| Modbus RTU | Master & Slave | Master & Slave | |
| Types | Data Bit | 8 Bit | |
| Stop Bit | 1 or 2 Bit | ||
| Parity | Even/Odd/None | ||
| Synchronization | Asynchronous | ||
| Transmission Speed | 1,200 ~ 115,200 | 1,200 ~ 115,200 | |
Ethernet Communication Specifications
| Built-in Ethernet Communication Specifications | ||
|---|---|---|
| Specification | Ethernet | |
| Communication Mode | CIMON HMI Protocol | ✓ |
| CICON Protocol | ✓ | |
| Protocol Program | - | |
| Modbus TCP | Slave | |
| High-Speed Ethernet Link | - | |
| DHCP | - | |
| Maximum Online Client | 5 clients simultaneously maximum | |
| Communication Speed | 10 Mbps 100 Mbps 1,000 Mbps | |
| Communication Specification | 10/100/1,000 base TX | |
High-Speed Counter
| High-Speed Counter | |
|---|---|
| Specification | Description |
| Counter Input Signal | Voltage input (open collector) |
| Maximum Counting Speed | Maximum 20,000pps In case of 2 channel use: 10,000pps |
| Number of Channels | 2 Channels 1-phase direct signal |
| Counting Range | Signed 32-bit -2,147,483,648 ~ 2,147,483,647 |
Positioning
| Positioning | |
|---|---|
| Specification | Description |
| Number of Control Axes | 2 axes |
| Interpolation | 2 axis linear interpolation |
| Pulse Output Type | Open collector DC 24V |
| Control Mode | Position Control Speed Control Speed/Position Switching Control Position/Speed Switching Control |
| Maximum Output Speed | 100,000pps |
