Pulse-Width Modulation for PLC-S Special Program Configuration

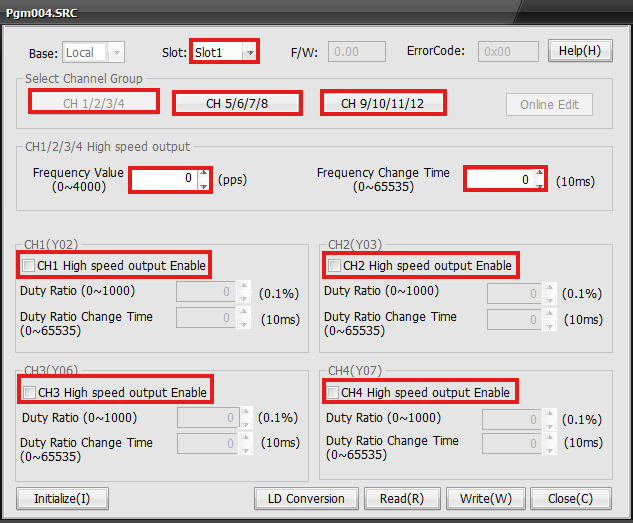

Pulse-Width Modulation Program Configuration​

  • Slot:
    • This is the CM3-SP32PWM's position within the PLC chassis.
  • Select Channel Group:
    • This will configure the following channel groups:
      • 1 ~ 4
      • 5 ~ 8
      • 9 ~ 12
  • High-Speed Output:
    • This will set the high-speed frequency value or frequency change time for the channel group.
  • Channel 1 ~ 12:
    • Configure parameters for each channel depending on the channel group.
