Change Data Register Information

Change Data Register​

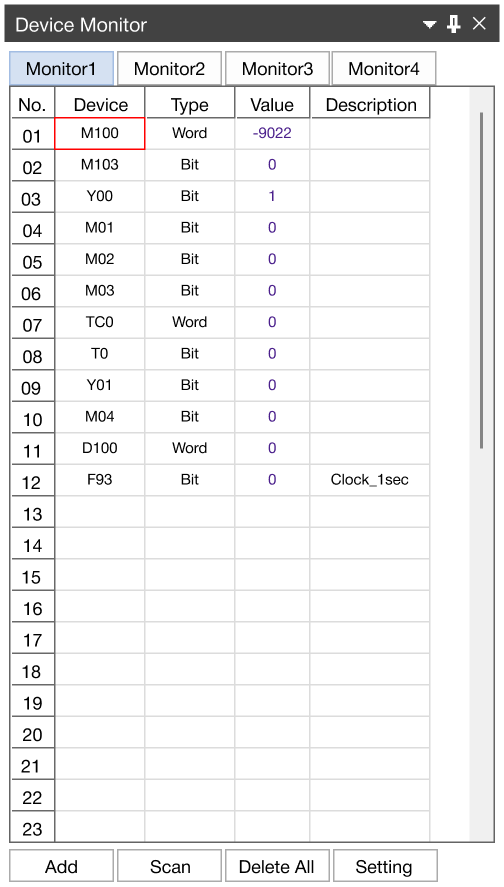

  1. To change the data register, double left-click on an existing data register under the Device tab.

  1. Select the data register, value, and/or data type for the new data register.

  2. Left-click OK.

Change Data Type​

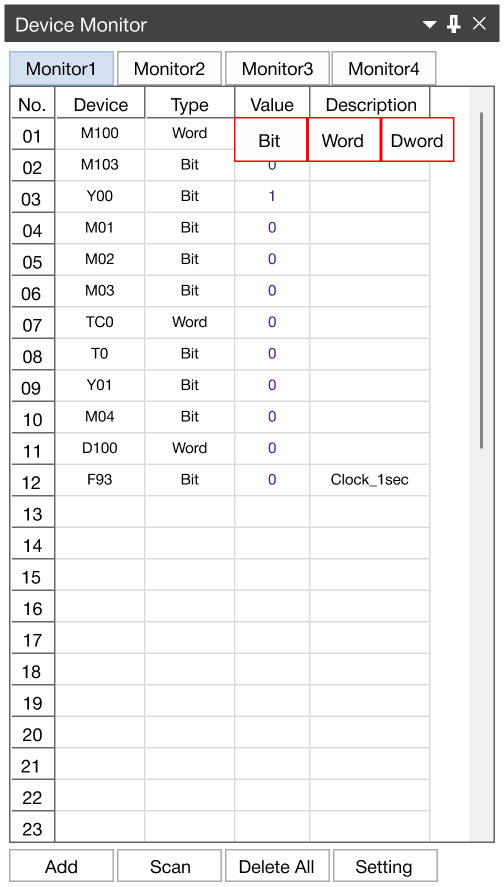

  1. To change the data register's data type, double left-click on an existing data register under the Type tab.

  1. Left-click the new data type.

Change Value​

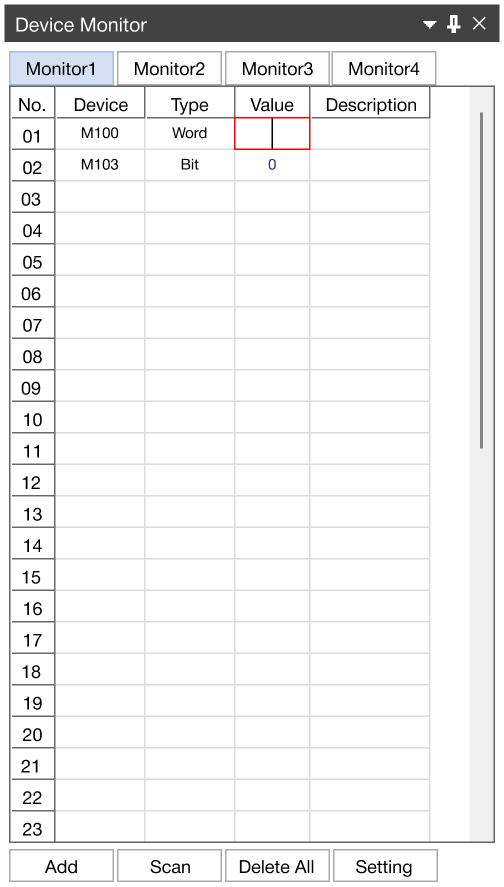

  1. To change the value of a data register, left-click in the Value tab, and type a new value.

  1. Type enter to change the value of the data register.

  1. Left-click Yes to override the existing value in the data register.

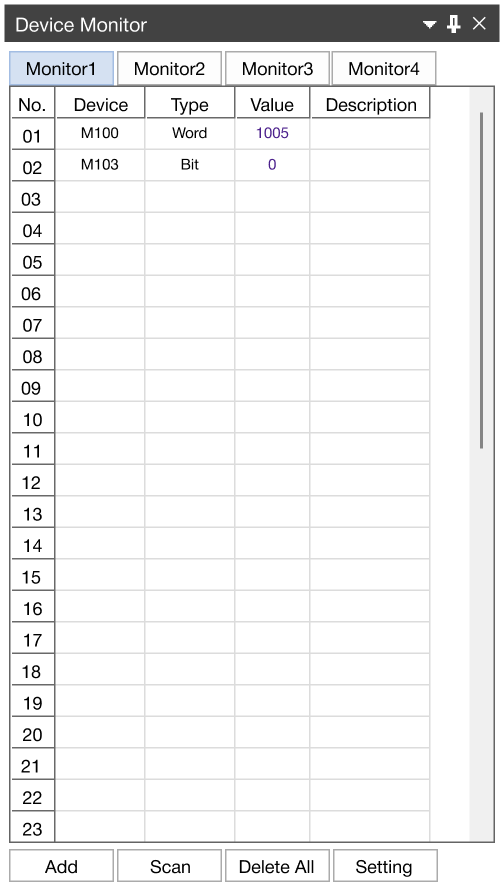

  • The change is reflected in the memory monitor.
