CM3 AD Module Internal I/O Table
CM3-SP04EAO Internal I/O Table
| CM3-SP04EAO Internal I/O Signal Table | |||
|---|---|---|---|
| Direction of Signal CM3-SP04EAO → CPU | Direction of Signal CPU → CM3-SP04EAO | ||
| Input | Name of Signal | Output | Name of Signal |
| Xn.0 | AD Module Ready | Yn.0 | Not Used |
| Xn.1 | Reserved | Yn.1 | |
| Xn.2 | Flag indicating the operation condition set up | Yn.2 | Requesting to set up an operation condition |
| Xn.3 | Reserved | Yn.3 | Reserved |
| Xn.4 | Yn.4 | ||
| Xn.5 | Yn.5 | ||
| Xn.6 | Yn.6 | ||
| Xn.7 | Channel 1 Maximum Alarm Value | Yn.7 | |
| Xn.8 | Channel 2 Maximum Alarm Value | Yn.8 | |
| Xn.9 | Channel 3 Maximum Alarm Value | Yn.9 | |
| Xn.A | Channel 4 Maximum Alarm Value | Yn.A | |
| Xn.B | Channel 1 Minimum Alarm Value | Yn.B | |
| Xn.C | Channel 2 Minimum Alarm Value | Yn.C | |
| Xn.D | Channel 3 Minimum Alarm Value | Yn.D | |
| Xn.E | Channel 4 Minimum Alarm Value | Yn.E | |
| Xn.F | AD Module Error Flag | Yn.F | Requesting to Clear Error Flag |
Allocation Example
The CM3-SP04EAO is allocated one WORD of X (Xn.0 ~ Xn.F) and one WORD of Y (Yn.0 ~ Yn.F).
n is a number representing the CM3-SP04EAO's position within the chassis.
To access the X memory registers for this CM3-SP04EAO example, the X value range is X2.0 ~ X2.F.
To access the Y memory registers for this CM3-SP04EAO example, the Y value range is Y2.0 ~ Y2.F.
CM3-SP08EAO Internal I/O Table
| CM3-SP08EAO Internal I/O Signal Table | |||
|---|---|---|---|
| Direction of Signal CM3-SP08EAO → CPU | Direction of Signal CPU → CM3-SP08EAO | ||
| Input | Name of Signal | Output | Name of Signal |
| Xn.0 | AD Module Ready | Yn.0 | Not Used |
| Xn.1 | Reserved | Yn.1 | |
| Xn.2 | Flag indicating the operation condition set up | Yn.2 | Requesting to set up an operation condition |
| Xn.3 | Reserved | Yn.3 | Reserved |
| Xn.4 | Yn.4 | ||
| Xn.5 | Yn.5 | ||
| Xn.6 | Yn.6 | ||
| Xn.7 | Yn.7 | ||
| Xn.8 | Yn.8 | ||
| Xn.9 | Yn.9 | ||
| Xn.A | Yn.A | ||
| Xn.B | Yn.B | ||
| Xn.C | Yn.C | ||
| Xn.D | Yn.D | ||
| Xn.E | Yn.E | ||
| Xn.F | AD Module Error Flag | Yn.F | Requesting to Clear Error Flag |

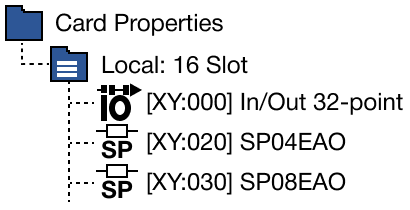

Allocation Example
The CM3-SP08EAO is allocated one WORD of X (Xn.0 ~ Xn.F) and one WORD of Y (Yn.0 ~ Yn.F).
n is a number representing the CM3-SP08EAO's position within the chassis.
To access the X memory registers for this CM3-SP08EAO example, the X value range is X3.0 ~ X3.F.
To access the Y memory registers for this CM3-SP08EAO example, the Y value range is Y3.0 ~ Y3.F.
