PLC-S Mini Modular CPU Series I/O Pin Map

Mini Modular CPU I/O Pin Map​

The following are I/O pin maps for the CM3-SP16MDTF, CM3-SP16MDCF, CM3-SP16MDRF, CM3-SP16MDRV, CM3-SP32MDTF, and CM3-SP32MDCF.

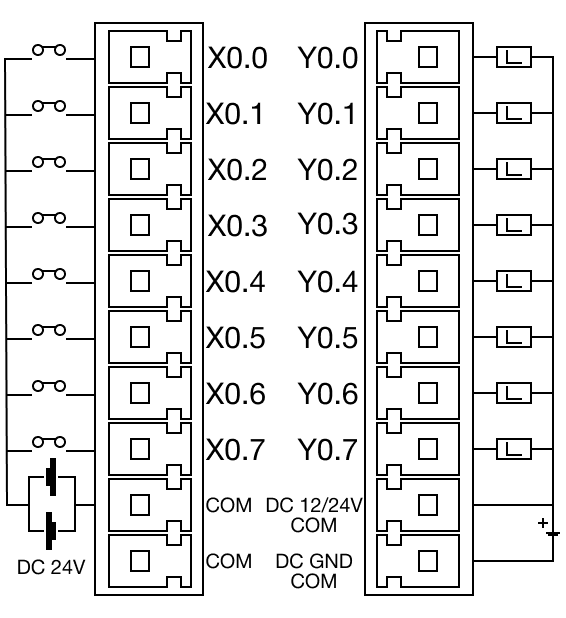

CM3-SP16MDTF​


Sinking output

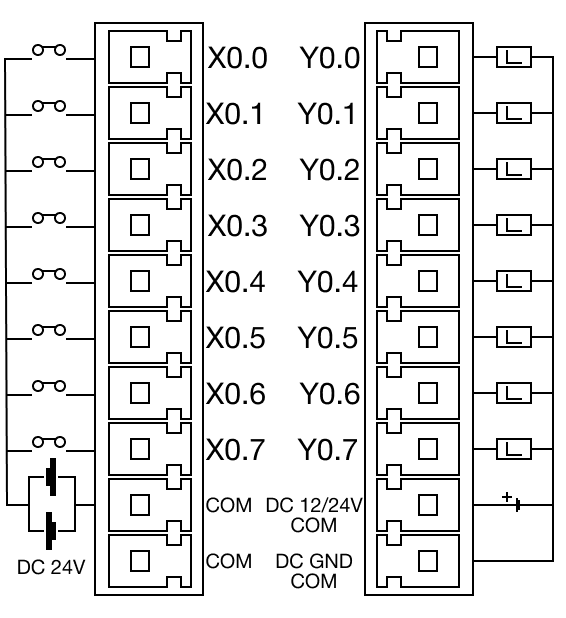

CM3-SP16MDCF​


Sourcing output

CM3-SP16MDRV​


Relay output (no embedded Ethernet)

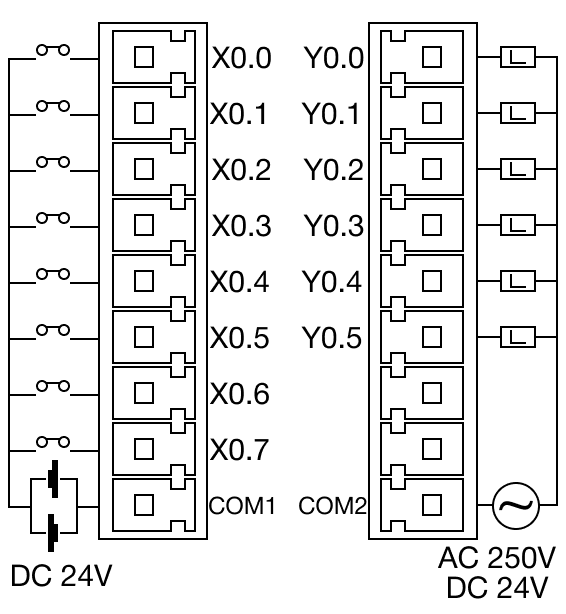

CM3-SP16MDRF​


Relay output (with embedded Ethernet)

CM3-SP32MDTF & CM3-SP32MDCF​

Input​


Universal (sinking and sourcing) input

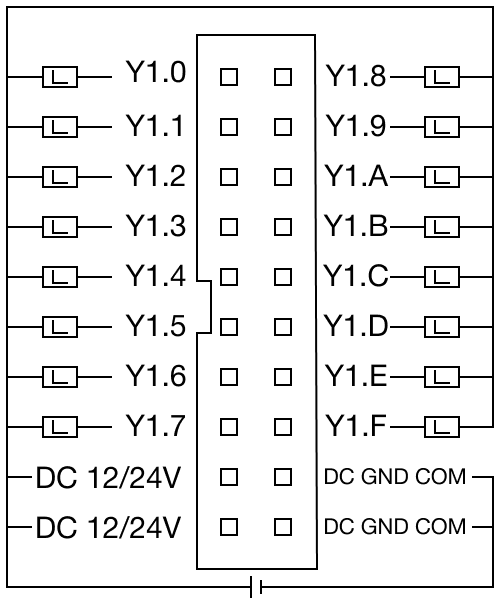

CM3-SP32MDTF Output​


Sinking output

CM3-SP32MDCF Output​


Sourcing output
