PLC-S Plus CPU Series Pin Map

Plus CPU I/O Pin Map​

The following are I/O pin maps for the CM3-SP16PDRF, CM3-SP32PDTF, and the CM3-SP32PDCF.

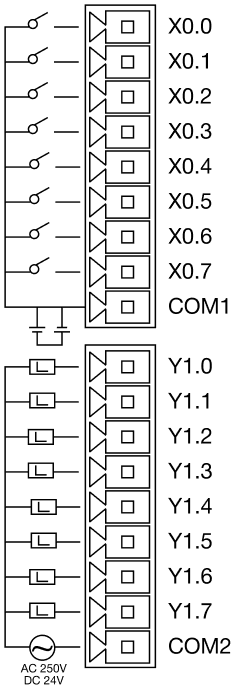

CM3-SP16PDRF​


Relay output

CM3-SP32PDTF​


Sinking output

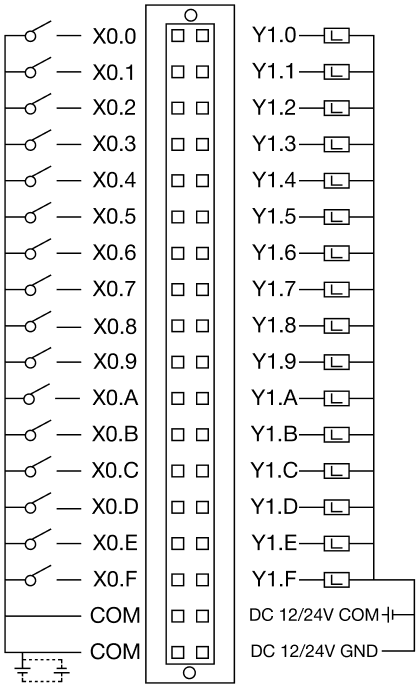

CM3-SP32PDCF​


Sourcing output
