PLC-S Plus CPU Series Features
Plus CPU Series

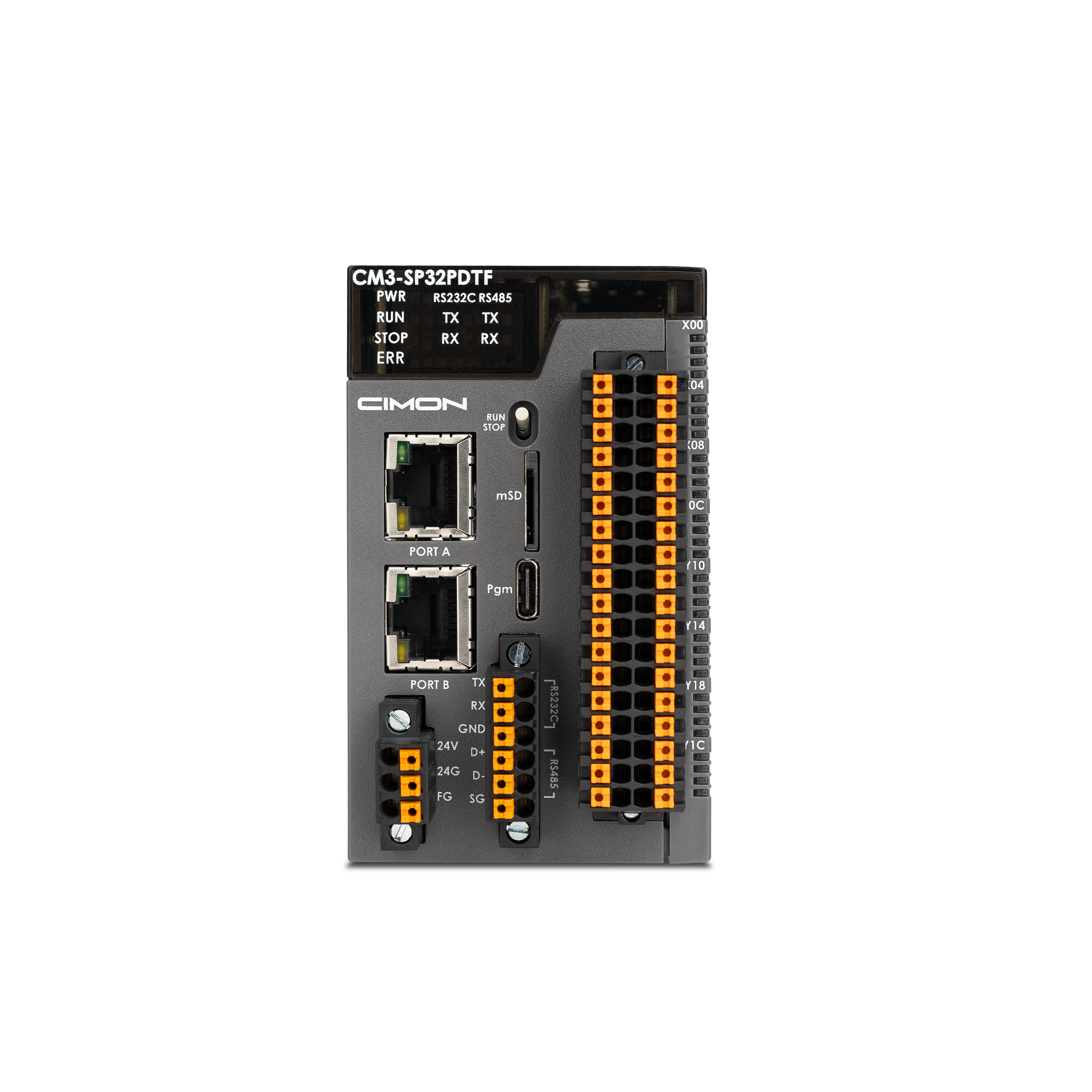

The PLC-S Plus Series from CIMON is an advanced Linux-based programmable logic controller (PLC) designed for high-speed, high-performance automation. Featuring a robust 32-bit architecture, multi-protocol communication, and seamless scalability, the PLC-S Plus is ideal for complex industrial applications requiring real-time control and data processing. With built-in Ethernet, RS232, and RS485 ports, it supports Modbus RTU/TCP, EtherNet/IP, OPC UA, and user-defined protocols, ensuring compatibility with a wide range of automation systems. Equipped with PID control, RTC functionality, and SD/MMC memory expansion, the PLC-S Plus delivers powerful computing capabilities for precision automation and system integration.
Features
- Three different output types depending on the module:
- Sinking outputs
- Sourcing outputs
- Relay outputs
- TR Output (DC 24V)
- 83ns/step processing time.
- 32 points of digital input and output:
- 16 points of digital input
- 16 points of digital output
- Sufficient memory for 128,000 steps.
- 32,767 WORDs of data memory.
- Maximum 15 expansion modules can be attached.
- Allows for a maximum of 512 I/O points.
- 4 built-in communication ports:
- RS-232(C)
- RS-422/RS-485
- 2 Ethernet Ports
- Support for Structured Text and Global Variable programming.
- Embedded support for Modbus TCP.
- Embedded support for OPC UA Server.
- Embedded support for EtherNet/IP.
- Support for explicit, asynchronous, and cyclic (implicit) communication.
- USB loader port.
- Micro-SD card slot.
- Built-in 64 loop PID control.
- Floating-point arithmetic.
- Run time editing:
- Ladder logic or instruction list languages.
- Built-in flash memory.
Built-in Functions
Serial Communication Specifications
| Built-in Serial Communication Specifications | |||
|---|---|---|---|
| Specification | Channel 1 | Channel 2 | |
| RS-232(C) | RS-485 | ||
| Communication Mode | CIMON HMI Protocol | ✓ | |
| CICON Protocol | ✓ | ✓ | |
| Protocol Program | - | - | |
| Modbus RTU | Master & Slave | Master & Slave | |
| Types | Data Bit | 8 Bit | |
| Stop Bit | 1 or 2 Bit | ||
| Parity | Even/Odd/None | ||
| Synchronization | Asynchronous | ||
| Transmission Speed | 1,200 ~ 115,200 | 1,200 ~ 115,200 | |
Ethernet Communication Specifications
| Built-in Ethernet Communication Specifications | ||
|---|---|---|
| Specification | Ethernet | |
| Communication Mode | CIMON HMI Protocol | ✓ |
| CICON Protocol | ✓ | |
| Protocol Program | - | |
| Modbus TCP | Master & Slave | |
| High-Speed Ethernet Link | - | |
| DHCP | - | |
| Maximum Online Client | 5 clients simultaneously maximum | |
| Communication Speed | 10 Mbps 100 Mbps 1,000 Mbps | |
| Communication Specification | 10/100/1,000 base TX | |
