CM3 EtherCAT Module Features

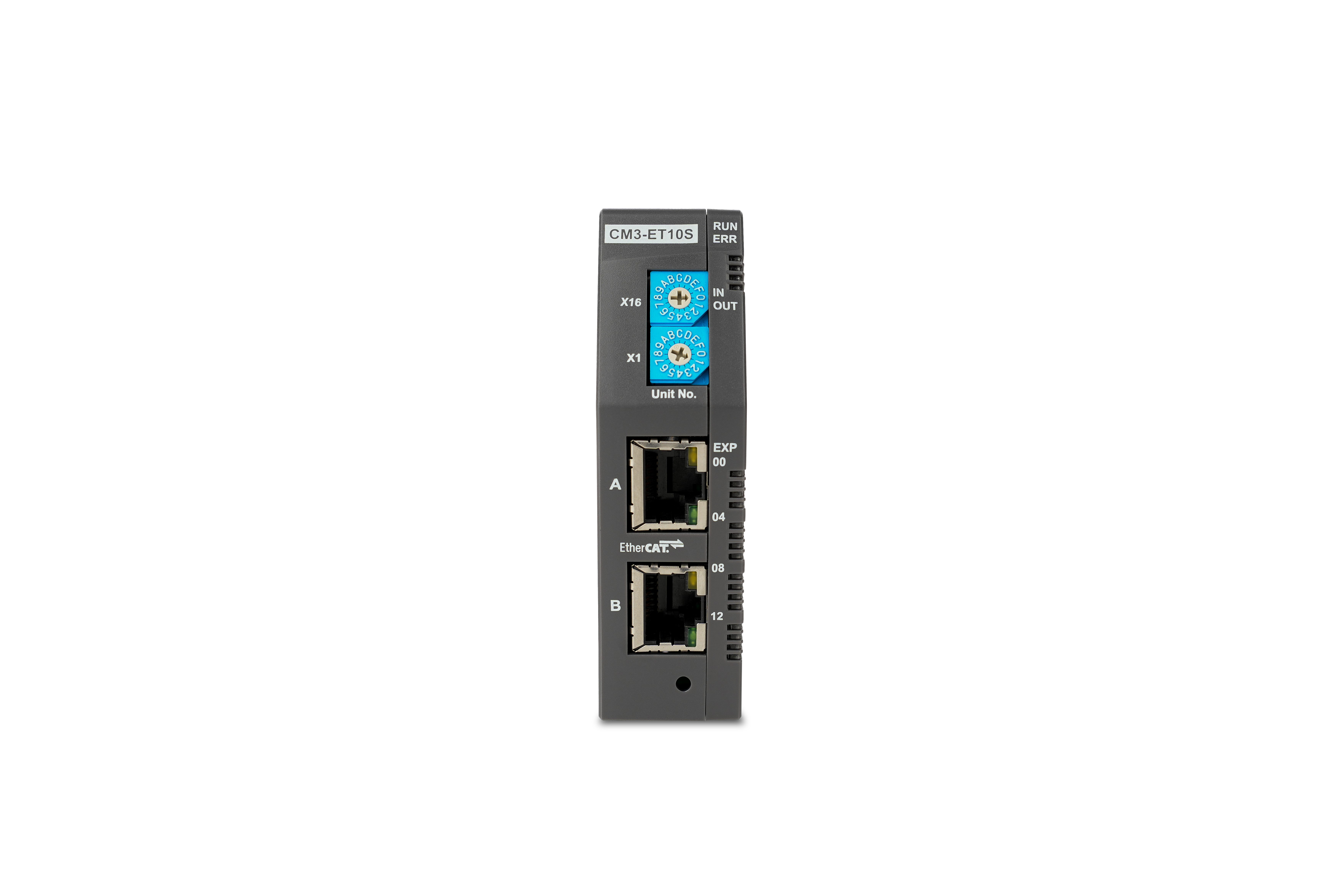

CM3 EtherCAT Module​


The CM3-ET10S module from CIMON is an EtherCAT slave module designed for efficient integration into industrial automation systems. It supports seamless communication with EtherCAT master devices from various manufacturers and adheres to the EtherCAT CiA402 standard profile. The module features robust multitask processing capabilities, supports CoE (CANopen over EtherCAT) protocol, and facilitates a full-duplex communication speed of up to 100 Mbps over daisy-chain topology using Category 5 or higher shielded cables.

With the ability to manage up to 255 slave devices, the CM3-ET10S ensures precise data handling, supports PDO data auto-control via device mapping, and enables user-defined system configurations through analog and digital module attachments. Rotary switches provide straightforward node address assignments, enhancing operational flexibility. Compact and durable, this module is a reliable choice for advanced, scalable automation solutions.

Features​

The CM3-ET10S supports the following features:

  • Supports EtherCAT communication.
  • Supports fast communication speeds of 1ms ~ 1,000ms.
  • Simple wiring with Ethernet cables.
  • Follows the standard CiA402 Profile of EtherCAT.
  • Ability to be controlled by other manufacturers' master devices.
  • Ability to construct a system by mounting analog and digital modules.
  • Supports PDO data auto control by using the device mapping feature.
  • Slave node address can be assigned by using the rotary switch.
