CM3 Positioning Module LED Display

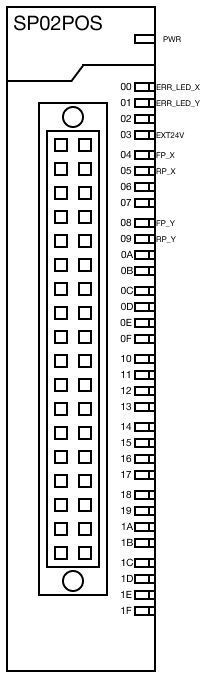

CM3-SP02POS Part Names​

CM3-SP02POS LEDs
LEDDescription
PWR

Power and initialization status
ON: Normal status
OFF: Stop
Blinking: Error

ERR_LED_X

X-Axis Error
Blinking

ERR_LED_Y

Y-Axis Error
Blinking

EXT24V

External 24V Input
ON: External Power Input
OFF: No power

FP_X

X-Axis Pulse Status
ON: Pulse ON

RP_X

X-Axis Direction Status
ON: Pulse ON

FP_Y

Y-Axis Pulse Status
ON: Pulse ON

RP_Y

Y-Axis Direction Status
ON: Pulse ON
