CM3 Digital I/O Module Dimensions
CM3-SP16EDR
Front-Facing
Side

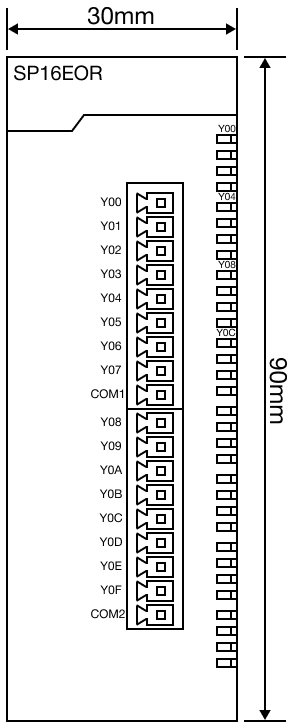

CM3-SP16EOR
Front-Facing
Side

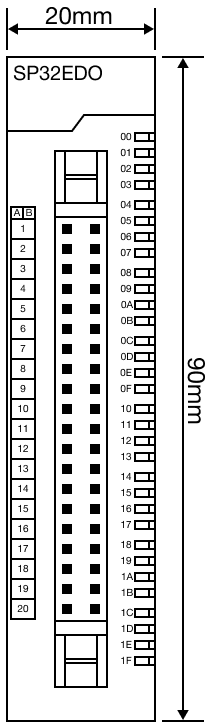

CM3-SP32EDO
Front-Facing
Side
CM3-SP32EDOP
Front-Facing
Side
CM3-SP32EDT
Front-Facing
Side

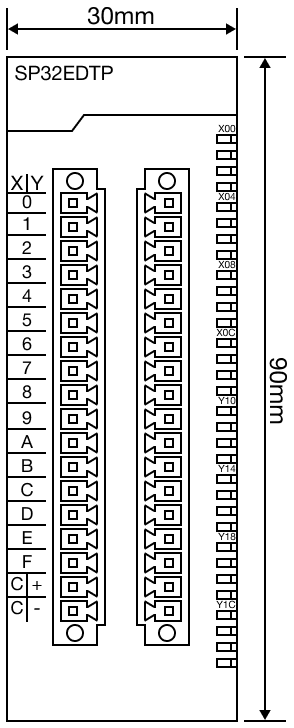

CM3-SP32EDTP
Front-Facing
Side
CM3-SP32EOT
Front-Facing
Side
CM3-SP32EOTP
Front-Facing
Side
CM3-SP32EDCP
Front-Facing
Side

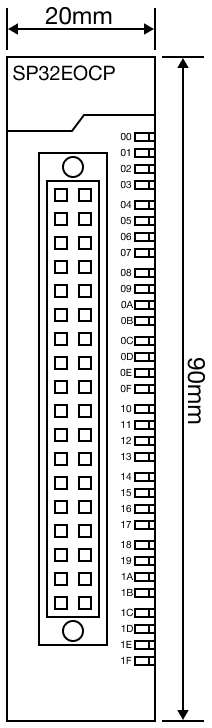

CM3-SP32EOCP
Front-Facing
Side
