CM3 Digital I/O Module Wiring Guide

Sink Type​


Sink type

Source Type​


Source type

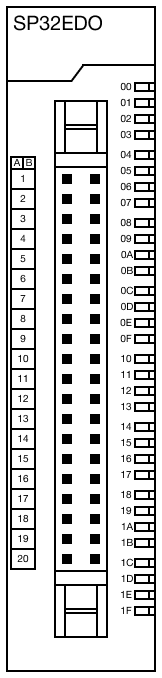

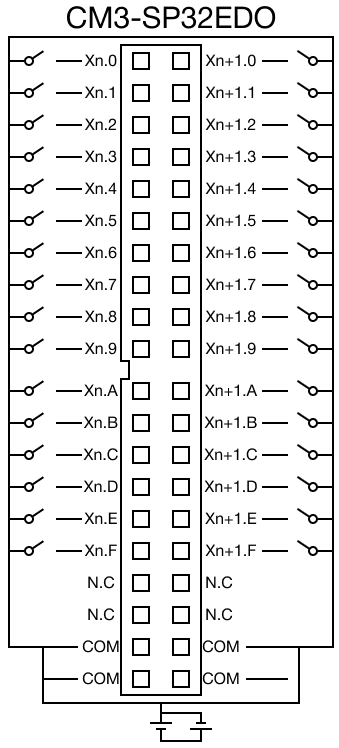

CM3-SP32EDO​



Universal (sinking/sourcing) input
No output

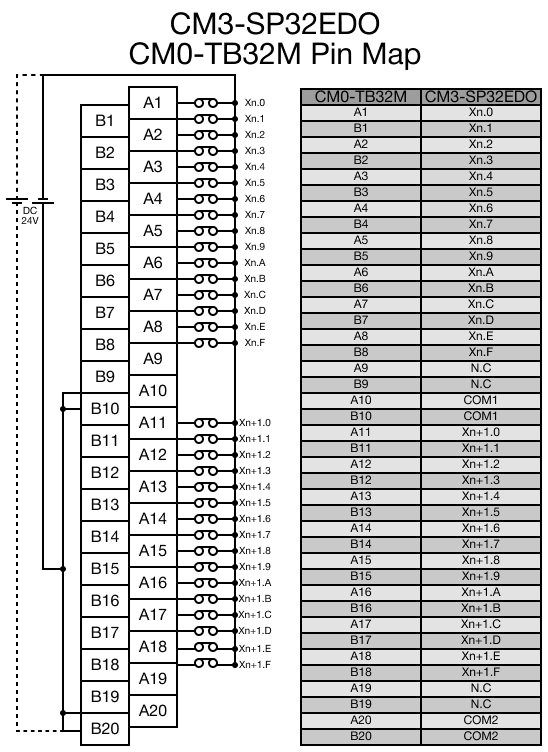

CM0-TB32M Pin Map​

CM3-SP32EDOP​



Universal (sinking/sourcing) input
No output

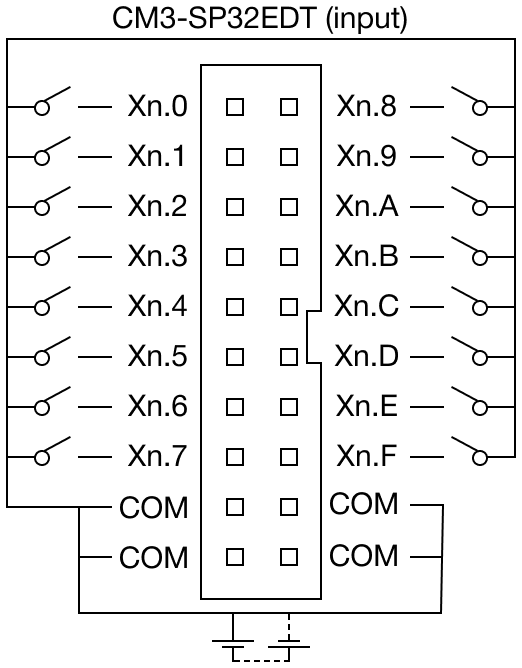

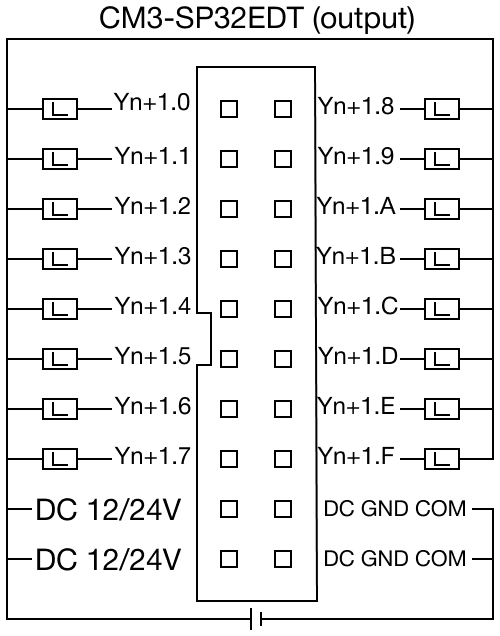

CM3-SP32EDT​

Input​


Universal (sinking/sourcing) input

Output​


Sinking output

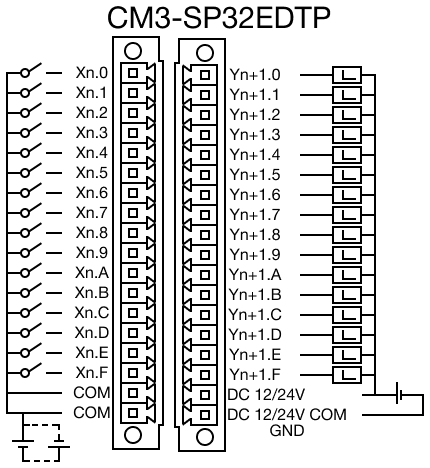

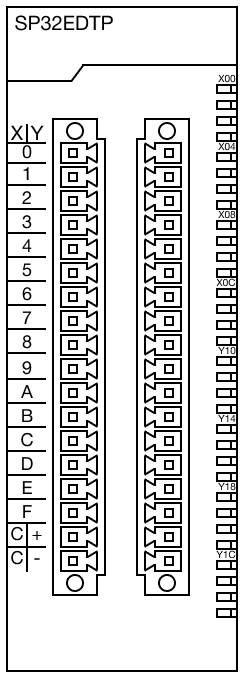

CM3-SP32EDTP​



Universal (sinking/sourcing) input
Sinking output

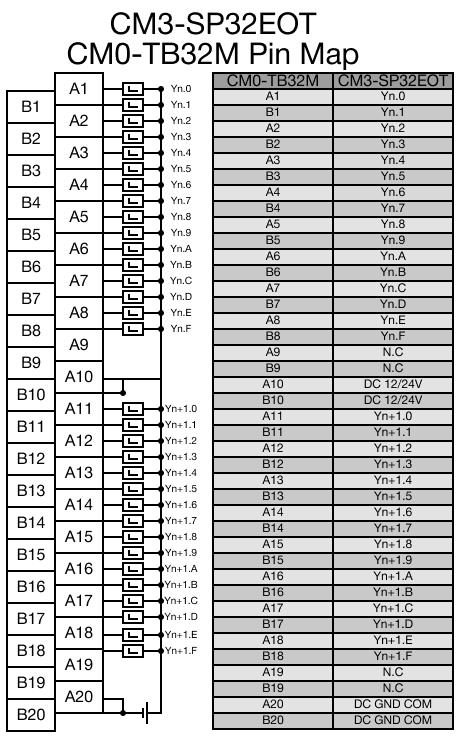

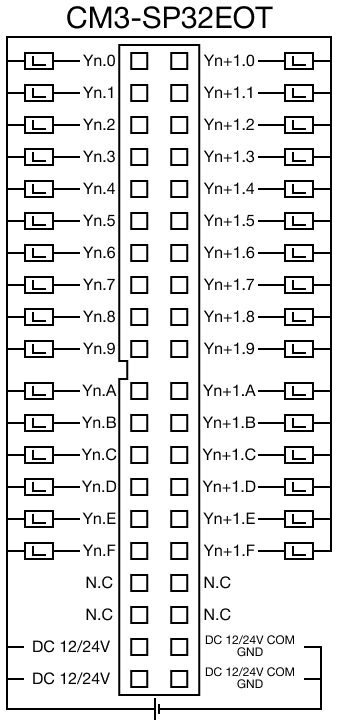

CM3-SP32EOT​



No input
Sinking output

CM0-TB32 Pin Map​

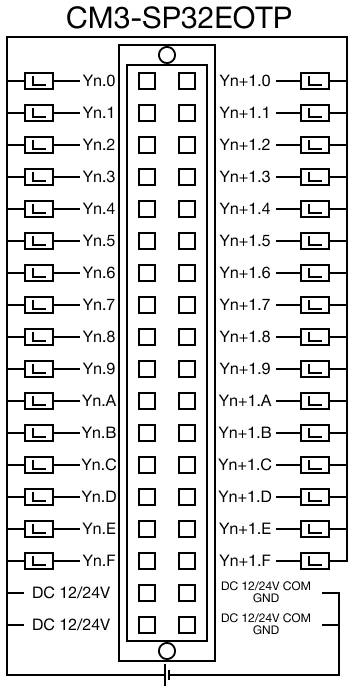

CM3-SP32EOTP​



No input
Sinking output

CM3-SP32EDCP​



Universal (sinking/sourcing) input
Sourcing output

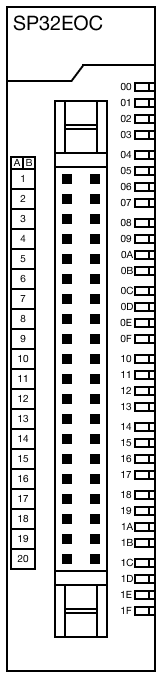

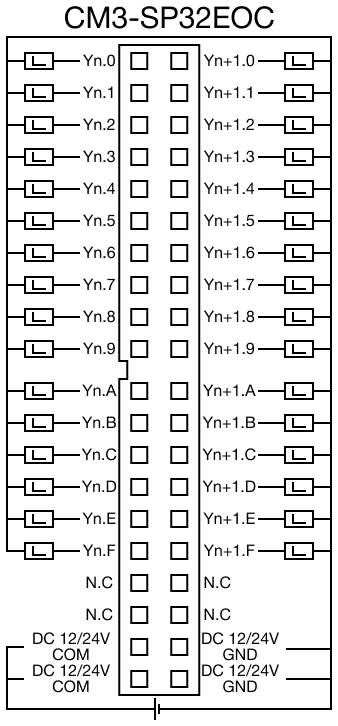

CM3-SP32EOC​



No input
Sourcing output

CM0-TB32M Pin Map​

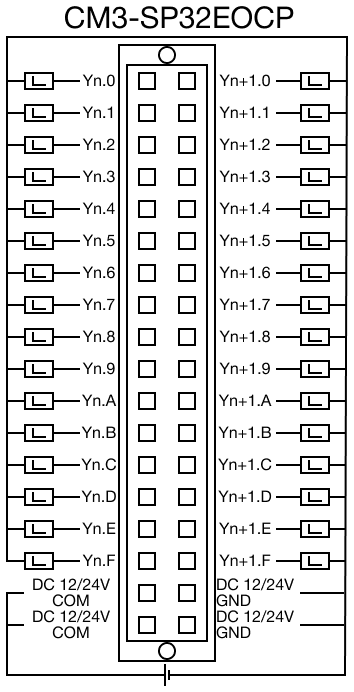

CM3-SP32EOCP​



No input
Sourcing output

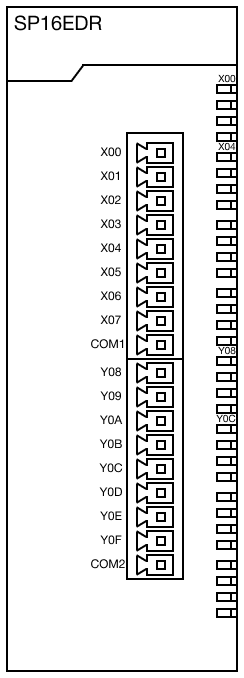

CM3-SP16EDR​



Universal (sinking/sourcing) input
Relay output

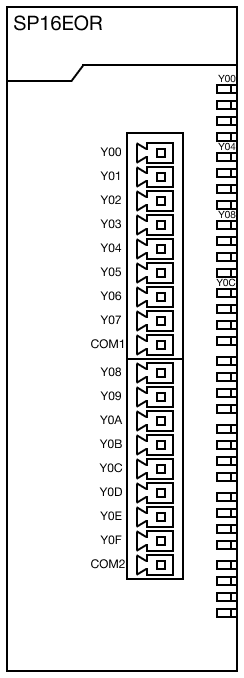

CM3-SP16EOR​



No input
Relay output
