CM3 Digital I/O Module Features

CM3 Digital I/O Module​


The CM3 digital input/output modules from CIMON provide a versatile range of options for digital control in automation systems. These modules support various input and output configurations, including transistor and relay outputs, making them suitable for different control environments. With options for 32-point digital input, output, and mixed input/output, these modules ensure compatibility with a wide array of sensors and actuators commonly used in industrial automation. They offer reliable DC 24V operation with transistor sink and source types, as well as relay outputs for higher voltage control, ensuring precise performance in both simple and complex automation tasks.

Features​

  • The following modules support the following features:
    • Input Only:
      • CM3-SP32EDO:
        • 32 digital input points
      • CM3-SP32EDOP:
        • 32 digital input points via push-in terminal block
    • Output Only:
      • CM3-SP16EOR:
        • 16 relay output points
      • CM3-SP32EOT:
        • 32 sinking output points
      • CM3-SP32EOTP:
        • 32 sinking output points via push-in terminal block
      • CM3-SP32EOC:
        • 32 sourcing output points
      • CM3-SP32EOCP:
        • 32 sinking output points via push-in terminal block
    • Input and Output Combo:
      • CM3-SP16EDR:
        • 8 digital input points
        • 8 relay output points
      • CM3-SP32EDT:
        • 16 digital input points
        • 16 sinking output points

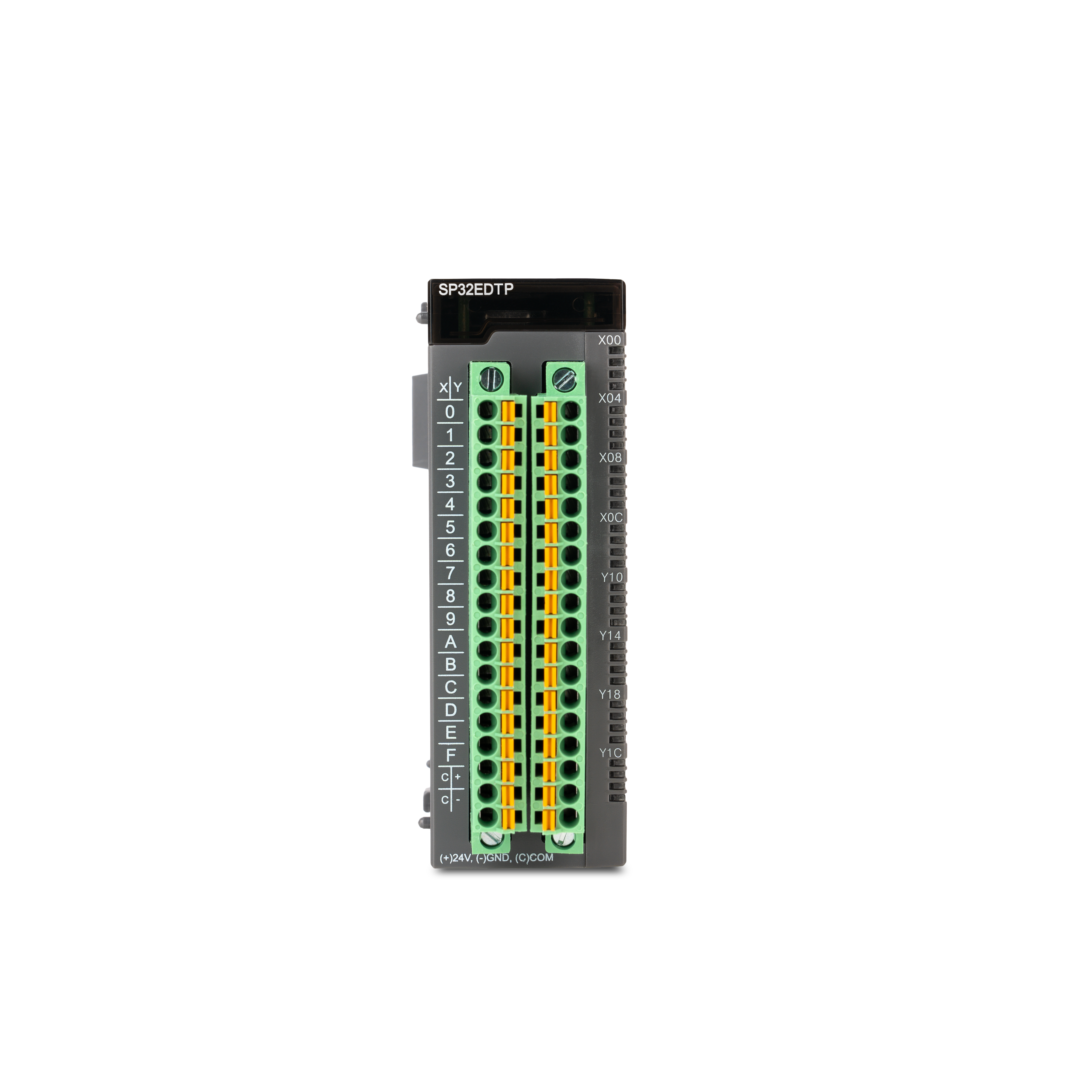

      • CM3-SP32EDTP:
        • 16 digital input points via push-in terminal block
        • 16 sinking output points via push-in terminal block
      • CM3-SP32EDCP:
        • 16 digital input points via push-in terminal block
        • 16 sourcing output points via push-in terminal block
