Edit Menu Bar

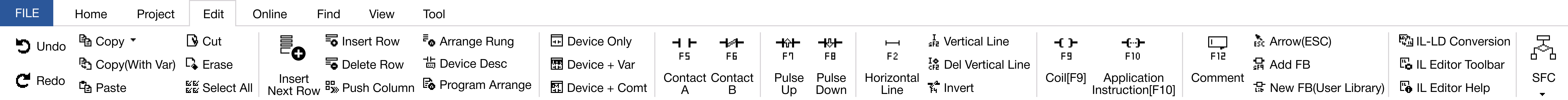

Edit Menu Bar Icons

Icon	Description
Undo	Undoes the last action.
Redo	Redoes the previously undone action.
Copy	Copies the selection to the clipboard.
Copy(With Var)	Copies the selection to the clipboard, including variables.
Paste	Inserts the contents from the clipboard.
Cut	Deletes the selection and copies it to the clipboard.
Erase	Deletes the selection.
Select All	Selects all contents in the document.
Insert Next Row	Inserts a row below the selection cursor.
Insert Row	Inserts a row above the selection cursor.
Delete Row	Deletes the selected row.
Push Column	Moves the selected column one space to the right.
Arrange Rung	Aligns the columns of a rung.
Device Desc	Adds a description for the selected data register.
Program Arrange	Aligns the columns and remove blank spaces in the project programs.
Device Only	Displays the data registers only.
Device Var	Displays the data registers with variable names.
Device Comt	Displays the data registers with comments.
Contact A	Inserts a normally open contact in the rung.
Contact B	Inserts a normally closed contact in the rung.
Pulse Up	Inserts a positive transition-sensing contact in the rung.
Pulse Down	Inserts a negative transition-sensing contact in the rung.
Horizontal Line	Inserts a horizontal line in the rung.
Vertical Line	Inserts a vertical line in the rung.
Del Vertical Line	Deletes the selected vertical line in the rung.
Invert	Inserts an inverted line in the rung.
Coil	Inserts a coil in the rung.
Application Instruction.	Opens the instruction window.
Comment	Opens the comment window.
Arrow(ESC)	Reverts the cursor to a standard mouse.
Add FB	Opens the Function Block window.
New FB(User Library)	Opens the custom Function Block window.
IL-LD Conversion	Converts the program between Instruction List and Ladder Diagram.
IL Editor Toolbar	Restores the Instruction List Editor toolbar.
IL Editor Help	Displays the information about the selected instruction.
SFC	Opens the Sequential Function Chart instruction drop-down.

SFC Drop-Down

Item	Description
STEP	Insert a step in the sequential function chart program.
STEP : SFSSE	Enable keep STEP in the sequential function chart program.
STEP : SFSSC	Coil keep STEP in the sequential function chart program.
STEP : SFSRS	Reset STEP in the sequential function chart program.
STEP : SFSDM	Dummy STEP in the sequential function chart program.
STEP : SFSSI	Initialize STEP in the sequential function chart program.
STEP : SFSSF	Finish STEP in the sequential function chart program.
STEP : SFSDM	Dummy STEP in the sequential function chart program.
BLOCK : SFBCL	Block in the sequential function chart program.
JUMP : SFJPS	Jump start in the sequential function chart program.
JUMP : SFJPA	Jump arrival in the sequential function chart program.
TRANSITION: SFTCN	Transition condition in the sequential function chart program.
TRANSITION: SFTNC	Transition no condition in the sequential function chart program.
TRANSITION: SFTSBCN	Transition selection branch condition in the sequential function chart program.
TRANSITION: SFTSBNC	Transition selection branch no condition in the sequential function chart program.
TRANSITION: SFTSUCN	Transition selection coupling condition in the sequential function chart program.
TRANSITION: SFTSUNC	Transition selection coupling no condition in the sequential function chart program.
TRANSITION: SFTPBCN	Transition parallel branch condition in the sequential function chart program.
TRANSITION: SFTPBNC	Transition parallel branch no condition in the sequential function chart program.
TRANSITION: SFTPUCN	Transition parallel coupling condition in the sequential function chart program.
TRANSITION: SFTPUNC	Transition parallel coupling no condition in the sequential function chart program.
