Online Menu Bar

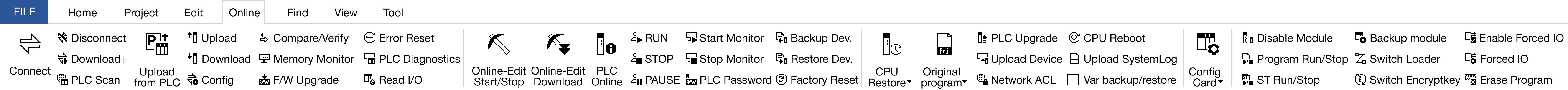

Online Menu Bar Icons
| Icon | Description |
|---|---|
 Connect | Connects to a PLC. |
 Disconnect | Disconnects from a PLC. |
 Download+ | Run the macro function Link+Download+Monitor. |
 PLC Scan | Scans the network for connected PLCs. |
 Upload from PLC | Uploads the project on the PLC to the computer. |
 Upload | Reads the programs, variables, and parameters from the PLC. |
 Download | Downloads the programs, variables, and parameters to the PLC. |
 Config | Opens the communication configuration window. |
 Compare/Verify | Compares and verifies the current project with the contents of the PLC. |
 Memory Monitor | Opens the PLC memory monitor window. |
 F/W Upgrade | Upgrades the firmware of the PLC. |
 Error Reset | Resets the current CPU error status. |
 PLC Diagnostics | Diagnoses and monitors PLC statuses and errors. |
 Read I/O | Reads the I/O module configuration. |
 Online-Edit Start/Stop | Starts or stops online editing. |
 Online-Edit Download | Downloads the program edited online. |
 PLC Online | Confirms the PLC's online state. |
 RUN | Sets the PLC mode to RUN. |
 STOP | Sets the PLC mode to STOP. |
 PAUSE | Sets the PLC mode to PAUSE. |
 Start Monitor | Starts program monitoring. |
 Stop Monitor | Stops program monitoring. |
 PLC Password | Configures the password for the PLC. |
 Backup Dev. | Uploads the data register memory from the PLC to a file. |
 Restore Dev. | Downloads the data register memory from a file to the PLC. |
 Factory Reset | Erases all PLC data, including the PLC password. |
 CPU Restore | Restores the settings for the high-speed PLC. |
 Original Program | Manages the original program for the high-speed PLC. |
 PLC Upgrade | Upgrades the PLC firmware. |
 Upload Device | Uploads the data register files from the PLC to the computer. |
 Network ACL | Opens the network access control list. |
 CPU Reboot | Restarts the PLC. |
 Upload SystemLog | Uploads the PLC system log to the computer. |
 Var backup/restore | Restores the original variable table. |
 Config Card | Configures the expansion modules from the drop-down. |
 Disable Module | Disables an expansion module. |
 Program Run/Stop | Starts or stops a program. |
 ST Run/Stop | Starts or stops a Structured Text program. |
 Backup Module | Exports the module configuration. |
 Switch Loader | Changes the loader protocol. |
 Switch Encryptkey | Changes the encryption key. |
 Enable Forced IO | Enables or disabled forced input/output. |
 Forced IO | Sets up the forced I/O. |
 Erase Program | Deletes the data in PLC memory. |
Original Program Drop-Down
| Item | Description |
|---|---|
| Read original file(CPU->PC) | Reads the file on the high-speed PLC to the computer. |
| Write original file(PC->CPU) | Writes the file on the computer to the high-speed PLC. |
| Check original file | Checks and verifies the original file. |
| Delete original file | Deletes the original file. |
Config Card Drop-Down
| Item | Description |
|---|---|
| Ethernet Module | Configures settings for the connected Ethernet communication expansion module. |
| RS232C/422 Module | Configures settings for the connected serial communication expansion module. |
| Data Logger Module | Configures settings for the connected data logger expansion module. |
| CDMA Module | Configures settings for the connected CDMA expansion module. |
| DNP3.0 (Ethernet) Module | Configures settings for the connected DNP3.0 Ethernet expansion module. |
| DNP3.0 (RS232C/422) Module | Configures settings for the connected DNP3.0 serial expansion module. |
| BACnet (Slave) Module | Configures settings for the connected BACnet slave expansion module. |
| DeviceNet (Master) Module | Configures settings for the connected DeviceNet expansion module. |
| AD Module | Configures settings for the connected analog-to-digital expansion module. |
| DA Module | Configures settings for the connected digital-to-analog expansion module. |
| AD/DA Module | Configures settings for the connected analog-to-digital/digital-to-analog expansion module. |
| AD MUX Module | Configures settings for the connected analog-to-digital multiplexer expansion module. |
| RTD Module | Configures settings for the connected resistance temperature detector expansion module. |
| TC Module | Configures settings for the connected thermocouple expansion module. |
| Loadcell Module | Configures settings for the connected load cell expansion module. |
| High Speed Counter | Configures settings for the connected high-speed counter expansion module. |
| IO Module | Configures settings for the connected digital input/output expansion module. |
| OPC UA Module | Configures settings for the connected OPC UA expansion module. |
