CM3 RTD Module Wiring Guide

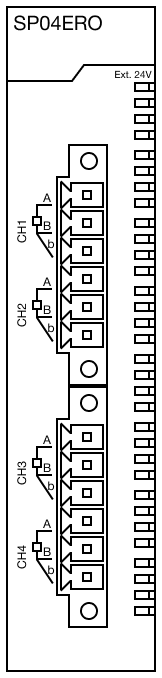

CM3-SP04ERO Wiring
| CM3-SP04ERO Wiring Guide | |||
|---|---|---|---|
| Channel | A Terminal | B Terminal | b Terminal |
| Channel 1 | Terminal 1 | Terminal 2 | Terminal 3 |
| Channel 2 | Terminal 4 | Terminal 5 | Terminal 6 |
| Channel 3 | Terminal 7 | Terminal 8 | Terminal 9 |
| Channel 4 | Terminal 10 | Terminal 11 | Terminal 12 |
| 24V External | Connection on bottom of module | ||
