Monitor a Program​

CICON programs can be monitored while the PLC is online and in RUN mode.

Program Monitor​

Ensure the PLC is connected to the computer beforehand.

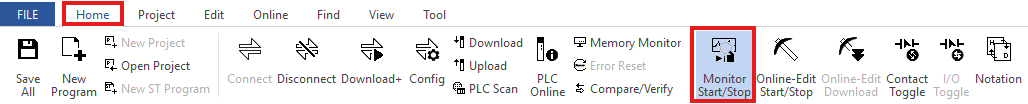

  1. Left-click Home and left-click Monitor Start/Stop to toggle between program monitoring.

Start Monitoring​

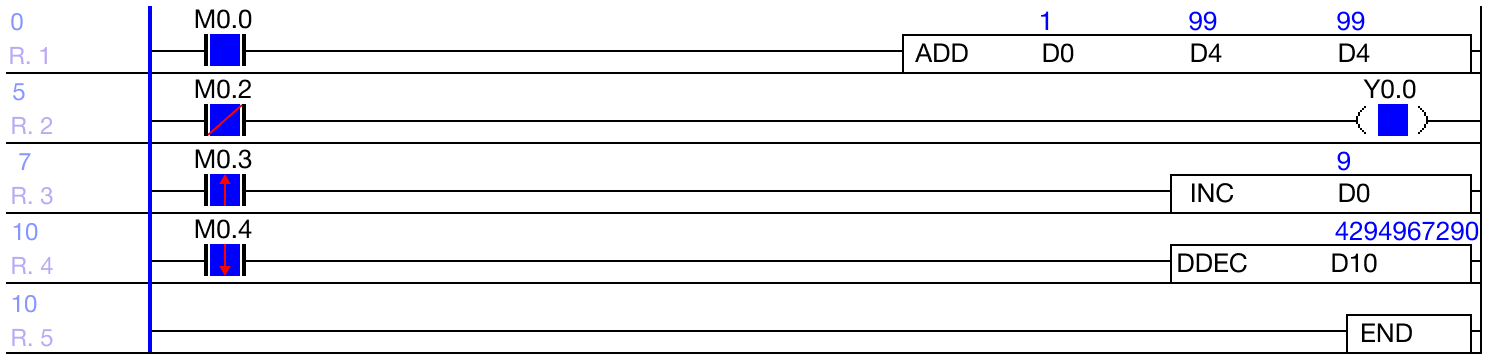

  • When program monitoring is on, the contacts, coils, instructions, and data registers will display their information and values.

Stop Monitoring​

  • When program monitoring is off, the contacts, coils, instructions, and data registers don't display any information or values.

Conn & Write​

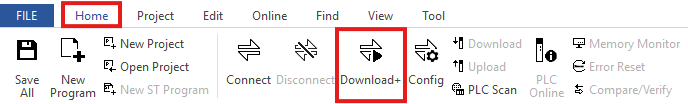

  • When using the Download + option, the program will be downloaded to the PLC and program monitoring will be enabled by default.
