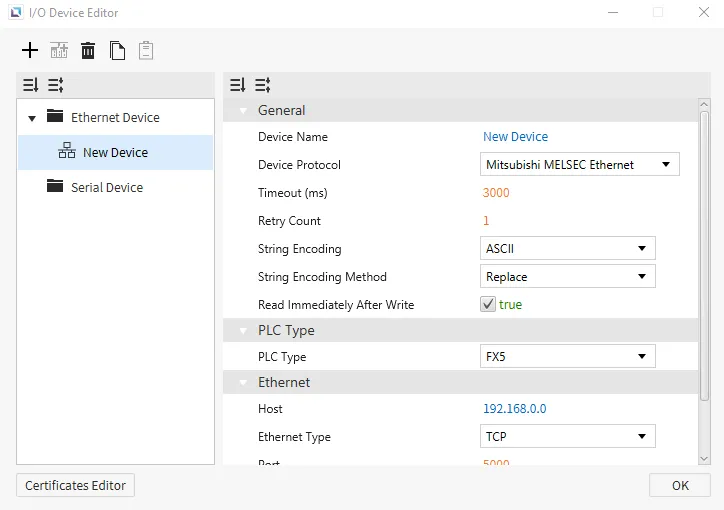

Canvas supports Mitsubishi MELSEC Ethernet as a way to connect with other devices that support this protocol. Users can select a Mitsubishi PLC Type within the settings to suit specific configurations better. Users will also be able to choose a Frame Type.

Mitsubishi FX5 (3-byte) Mapping

Format

• General Format: {Symbol}{Address} (Address notation varies by symbol)

Memory Area and Ranges

Memory Area	Symbol	Digital	Analog	Address Notation	Access
Input	X	X0000 - X1757	-	Octal	R
Output	Y	Y0000 - Y1757	-	Octal	R
Internal Relay	M	M0000 - M7659	-	Decimal	R/W
Latching Relay	L	L0000 - L7659	-	Decimal	R/W
Annunciator	F	F000 - F107	-	Decimal	R/W
Link Relay	B	B000 - B0EF	-	Hexadecimal	R/W
Step Relay	S	S0000 - S4079	-	Decimal	R/W
Timer - Contact	TS	TS000 - TS496	-	Decimal	R/W
Timer - Coil	TC	TC000 - TC496	-	Decimal	R/W
Retentive Timer - Contact	SS	SS00 - SS00	-	Decimal	R/W
Retentive Timer - Coil	SC	SC00 - SC00	-	Decimal	R/W
Counter - Contact	CS	CS000 - CS240	-	Decimal	R/W
Counter - Coil	CC	CC000 - CC240	-	Decimal	R/W
Link Special Relay	SB	SB000 - SB1EF	-	Hexadecimal	R/W
Special Relay	SM	SM0000 - SM9979	-	Decimal	R/W
Data Register	D	-	D0000 - D7999	Decimal	R/W
Link Register	W	-	W000 - W1FF	Hexadecimal	R/W
Timer - Current Value	TN	-	TN000 - TN511	Decimal	R/W
Retentive Timer - Current Value	SN	-	SN00 - SN15	Decimal	R/W
Counter - Current Value	CN	-	CN000 - CN255	Decimal	R/W
Link Special Register	SW	-	SW000 - SW1FF	Hexadecimal	R/W
Special Register	SD	-	SD00000- SD11999	Decimal	R/W

Mitsubishi Q/L (3-byte) Mapping

Format

• General Format: {Symbol}{Address} (Address notation varies by symbol)

Memory Area and Ranges

Memory Area	Symbol	Digital	Analog	Address Notation	Access
Input	X	X0000 - X1FFF	-	Hexadecimal	R
Output	Y	Y0000 - Y1FFF	-	Hexadecimal	R
Internal Relay	M	M0000 - M8191	-	Decimal	R/W
Latching Relay	L	L0000 - L8191	-	Decimal	R/W
Annunciator	F	F000 - F2047	-	Decimal	R/W
Edge Relay	V	V000 - V2047	-	Decimal	R/W
Link Relay	B	B000 - B1FFF	-	Hexadecimal	R/W
Timer - Contact	TS	TS000 - TS2047	-	Decimal	R/W
Timer - Coil	TC	TC000 - TC2047	-	Decimal	R/W
Retentive Timer - Contact	SS	SS00 - SS2047	-	Decimal	R/W
Retentive Timer - Coil	SC	SC00 - SC2047	-	Decimal	R/W
Counter - Contact	CS	CS000 - CS1023	-	Decimal	R/W
Counter - Coil	CC	CC000 - CC1023	-	Decimal	R/W
Link Special Relay	SB	SB000 - SB7FF	-	Hexadecimal	R/W
Special Relay	SM	SM0000 - SM2047	-	Decimal	R/W
Data Register	D	-	D0000 - D12287	Decimal	R/W
Link Register	W	-	W000 - W1FFF	Hexadecimal	R/W
Timer - Current Value	TN	-	TN000 - TN2047	Decimal	R/W
Retentive Timer - Current Value	SN	-	SN00 - SN2047	Decimal	R/W
Counter - Current Value	CN	-	CN000 - CN1023	Decimal	R/W
Link Special Register	SW	-	SW000 - SW7FF	Hexadecimal	R/W
Special Register	SD	-	SD00000- SD2047	Decimal	R/W

Mitsubishi IQ-R (4-byte) Mapping

Format

• General Format: {Symbol}{Address} (Address notation varies by symbol)

Memory Area and Ranges

Memory Area	Symbol	Digital	Analog	Address Notation	Access
Input	X	X0000 - X2FFF	-	Hexadecimal	R
Output	Y	Y0000 - Y2FFF	-	Hexadecimal	R
Internal Relay	M	M0000 - M161882111	-	Decimal	R/W
Latching Relay	L	L0000 - L32767	-	Decimal	R/W
Annunciator	F	F000 - F32767	-	Decimal	R/W
Edge Relay	V	V000 - V32767	-	Decimal	R/W
Link Relay	B	B000 - B9A61FFF	-	Hexadecimal	R/W
Timer - Contact	TS	TS000 - T8993439	-	Decimal	R/W
Timer - Coil	TC	TC000 - T8993439	-	Decimal	R/W
Retentive Timer - Contact	STS	STS00 - STS8993439	-	Decimal	R/W
Retentive Timer - Coil	STC	STC00 - STC8993439	-	Decimal	R/W
Counter - Contact	CS	CS000 - CS8993439	-	Decimal	R/W
Counter - Coil	CC	CC000 - CC8993439	-	Decimal	R/W
Link Special Relay	SB	SB000 - SB9A61FFF	-	Hexadecimal	R/W
Special Relay	SM	SM0000 - SM65535	-	Decimal	R/W
Data Register	D	-	D0000 - D10117631	Decimal	R/W
Link Register	W	-	W000 - W9A61FF	Hexadecimal	R/W
Timer - Current Value	TN	-	TN000 - TN8993439	Decimal	R/W
Retentive Timer - Current Value	STN	-	STN00 - STN8993439	Decimal	R/W
Counter - Current Value	CN	-	CN000 - CN8993439	Decimal	R/W
Link Special Register	SW	-	SW000 - SW9A61FF	Hexadecimal	R/W
Special Register	SD	-	SD00000- SD11999	Decimal	R/W
