Omron FINS Introduction

Omron FINS

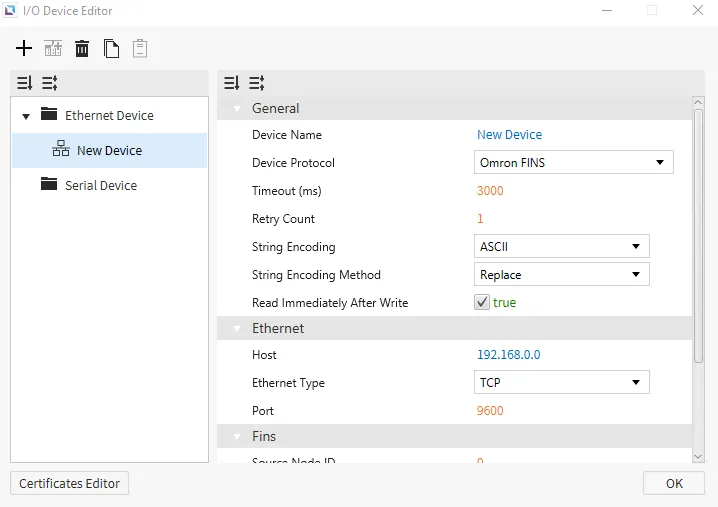

Canvas supports Omron FINS as a way to connect to other devices that support this protocol. Users will need to set up Fins to use it. Users must specify the ID of the Source Node, Source Network, Destination Network, Destination Node, and Destination Unit to have Omron FINS set up correctly.

• General Format: {Symbol}{Starting Address}
  • Symbol: refer to the tables below.
    • This driver uses some non-standard symbols for the Counter and Timer memory areas.
  • Starting Address: represented in decimal notation. Does not use leading zeros.
• Expansion Data Notation: E{Bank Number}_{Starting Address}
  • Bank Number: represented in Hexadecimal notation.
    • Example: WORD-based tag with Starting Address 149 on Bank 11 (0xB): EB_00149.
  • Starting Address: represented in decimal notation. Does not use leading zeros.

CS1 & CJ1

Memory Area and Ranges

Memory Area	Symbol	Bit Address	WORD Address	Access
Auxiliary Relay	A	A000.00 - A447.15	A000 - A447	R
		A448.00 - A959.15	A448 - A959	R/W
Common I/O	CIO	CIO0000.00 - CIO6143.15	CIO0000 - CIO6143	R/W
Counter Preset Value	CV	-	CV0000 - CV4095	R/W
Counter Status	CC	CC0000 - CC4095	-	R/W
Data Memory	D	D00000.00 - D32767.15	D00000 - D32767	R/W
Expansion Data Memory	E	E0_00000.00 - EC_32767.15	E0_00000 - EC_32767	R/W
Holding Relay	H	H0000.00 - H1535.15	H0000 - H1535	R/W
Index Register	IR	-	IR00 - IR15	R/W
Timer Preset Value	TV	-	TV0000 - TV4095	R/W
Timer Status	TC	TC0000 - TC4095	-	R/W
Working Relay	W	W000.00 - W511.15	W000 - W511	R/W

CJ2

Memory Area and Ranges

Memory Area	Symbol	Bit Address	WORD Address	Access
Auxiliary Relay	A	A000.00 - A447.15	A000 - A447	R
		A0448.00 - A1471.15	A0448 - A1471	R/W
		A10000.00 - A11535.15	A10000 - A11535	R
Common I/O	CIO	CIO0000.00 - CIO6143.15	CIO0000 - CIO6143	R/W
Counter Preset Value	CV	-	CV0000 - CV4095	R/W
Counter Status	CC	CC0000 - CC4095	-	R/W
Data Memory	D	D00000.00 - D32767.15	D00000 - D32767	R/W
Expansion Data Memory	E	E0_00000.00 - EF_32767.15	E0_00000 - EF_32767	R/W
Holding Relay	H	H0000.00 - H1535.15	H0000 - H1535	R/W
Index Register	IR	-	IR00 - IR15	R/W
Timer Preset Value	TV	-	TV0000 - TV4095	R/W
Timer Status	TC	TC0000 - TC4095	-	R/W
Working Relay	W	W000.00 - W511.15	W000 - W511	R/W
