Panasonic FP7 Introduction

Panasonic FP7

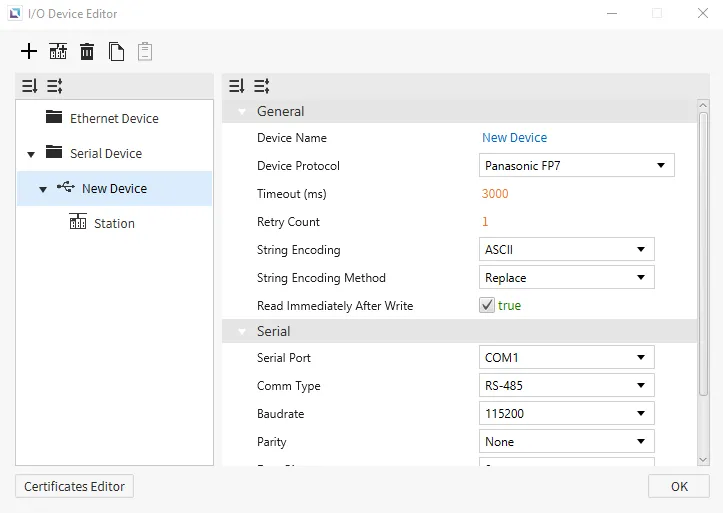

Canvas supports Panasonic FP7 as a way to connect to devices that support this protocol. No additional settings will appear for the selection of this protocol.

Memory Area and Ranges

Memory Area	Symbol	Digital	Analog	Address Notation	Access
External Input Relay	X	X000.0 - X511.F	X000 - X511	Decimal Hexadecimal	R/W
External Output Relay	Y	Y000.0 - Y511.F	Y000 - Y511	Decimal Hexadecimal	R/W
Internal Relay	R	R0000.0 - R2047.F	R0000 - R2047	Decimal Hexadecimal	R/W
Link Relay	L	L0000.0 - L1023.F	L0000 - L1023	Decimal Hexadecimal	R/W
Data Register	DT	DT000000.0 - DT999423.F	DT000000 - DT999423	Decimal Hexadecimal	R/W
Link Register	LD	LD00000.0 - LD16383.F	LD00000 - LD16383	Decimal Hexadecimal	R/W
Timer - Set Value Register	TS	-	TS0000 - TS4095	Decimal Hexadecimal	R/W
Timer - Elapsed Value Register	TE	-	TE0000 - TE4095	Decimal Hexadecimal	R/W
Counter - Set Value Register	CS	-	CS0000 - CS1023	Decimal Hexadecimal	R/W
Counter - Elapsed Value Register	CE	-	CE0000 - CE1023	Decimal Hexadecimal	R/W
Timer - Contact	T	T0000 - T4095	-	Decimal	R
Counter - Contact	C	C0000 - C1023	-	Decimal	R
Pulse Relay	P	P000 - P255	-	Decimal	R
Error Alarm Relay	E	E0000 - E4095	-	Decimal	R
Index Register	I	-	I00 - I14	Decimal	R/W
Unit Memory	UM	UM000000.0 - UM524287.F	UM000000 - UM524287	Decimal Hexadecimal	R/W
Direct Input	IN	-	IN00 - IN62	Decimal	R/W
Direct Output	OT	OT00.0 - OT62.F	OT00 - OT62	Decimal Hexadecimal	R/W
System Relay	SR	-	SR0000 - SR0223	Decimal	R
System Data	SD	-	SD000 - SD255	Decimal	R
