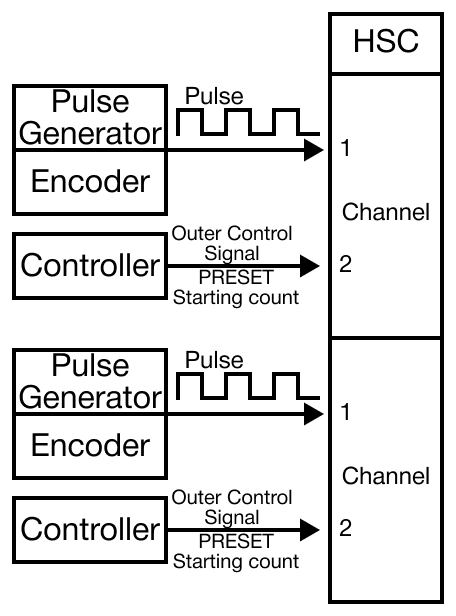

CM3 High-Speed Counter Module Concept

1. Count the incoming pulse.

2. The preset and enable count operation can be operated by the external signal.

3. Compare the current count value with the compared value.

   • Turn Output Compare ON or OFF.
     • 2 points per channel.

4. By using the scan program, it is possible to check the input and output signal and buffer memory.
