CM3 High-Speed Counter Module Part Names

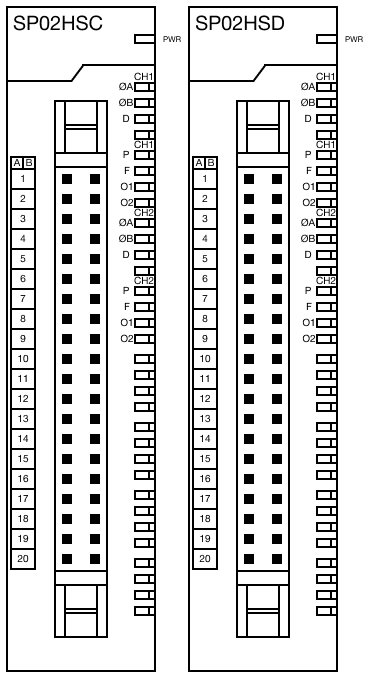

CM3-SP02HSC & CM3-SP02HSD Part Names
| CM3-SP02HSC & CM3-SP02HSD LED Names | |
|---|---|
| LED Name | Description |
| PWR | Module is powered and initialization is complete. PWR LED blinks when an error occurs. |
| ØA | A-phase Pulse Input (V) |
| ØB | B-Phase Pulse Input (V) |
| D | Count is decreasing |
| P | External preset terminal input (V) |
| F | Enable count terminal input (V) |
| O1 O2 | Output compare |
