BACnet Slave Modules

BACnet Slave​

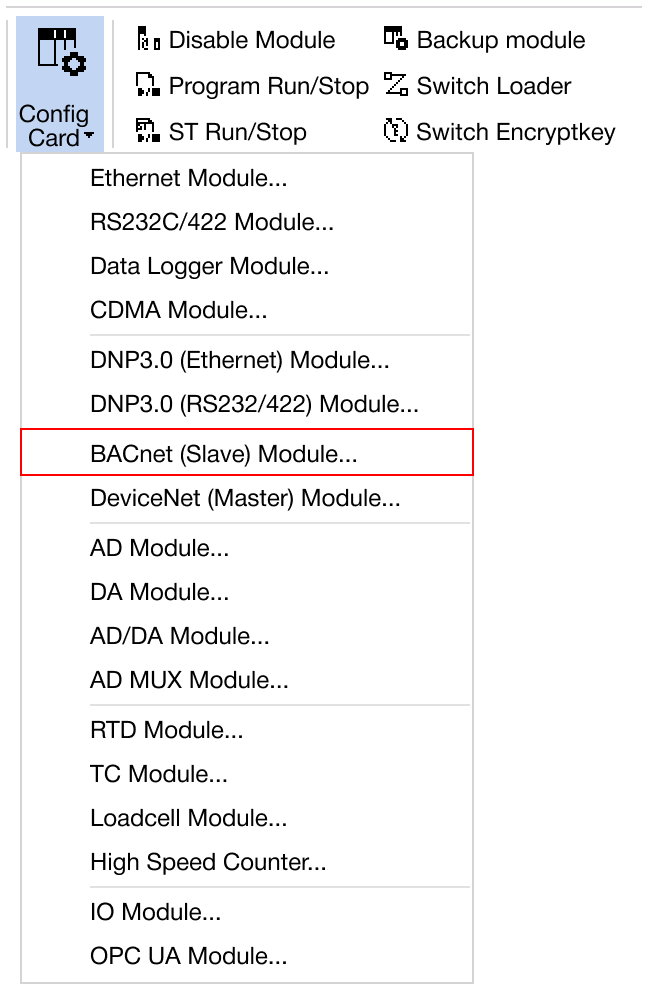

Navigate to Online → Special Module Setup → BACnet Module or click on the BACnet module within the Card Properties.

Applied Modules​

  • CM1-BN01A

BACnet Slave Module​

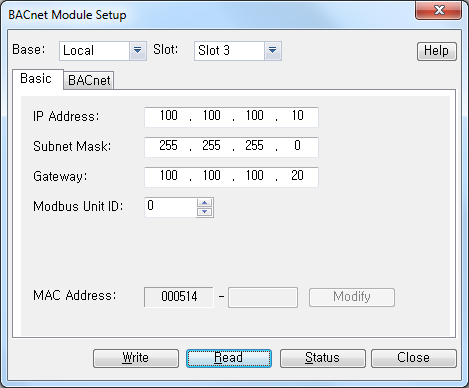

  1. Configure the module IP address, subnet mask, gateway, or Modbus Unit ID.

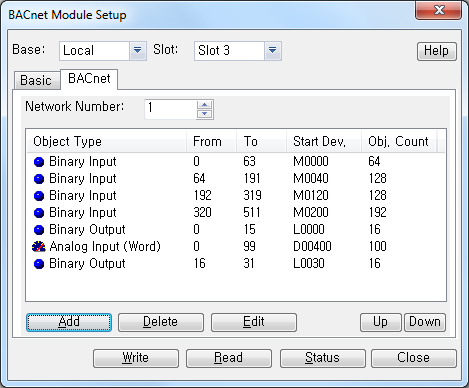

  1. Register the data register as an Object Type.

  2. Once the settings are configured, click OK to confirm and apply the changes.

  3. To save the configured parameters to the PLC, click Write.

  4. Click Read to check the parameters.

  5. For real-time monitoring and module diagnostics, click Status. This displays the current value, minimum and maximum values, firmware version of the module, and any error codes.
