RTD Modules

Resistance Temperature Detector (RTD)

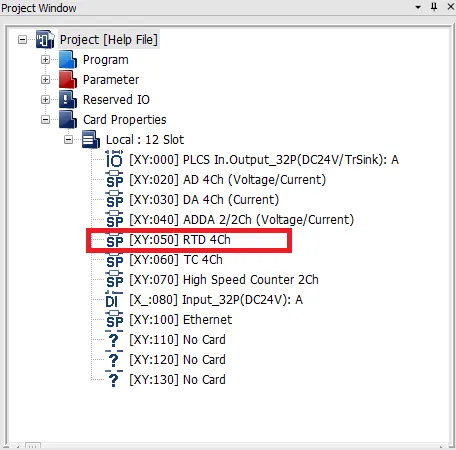

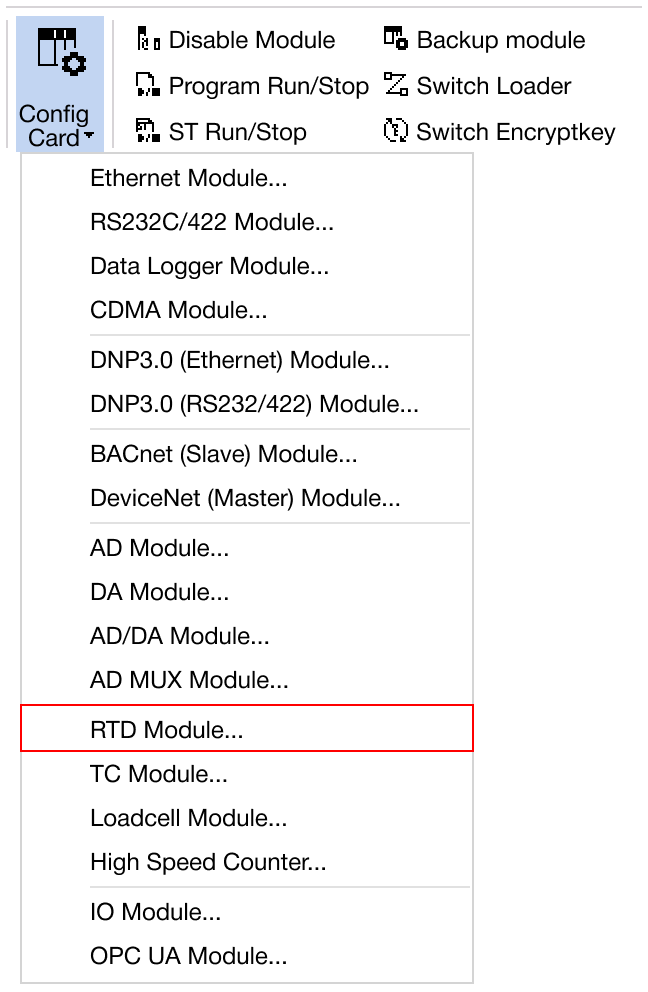

Navigate to Online → Special Module Setup → RTD Module or click on the RTD module within the Card Properties.

Hold CTRL to configure all channels at once.

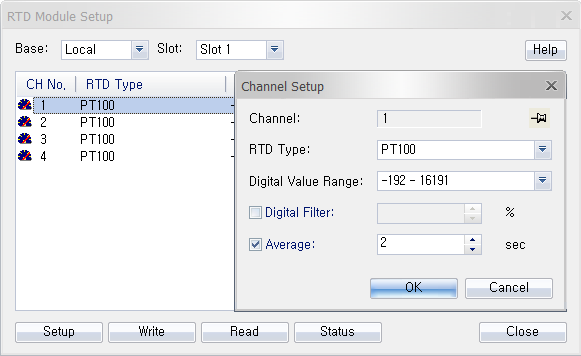

Click Setup to configure the RTD type, digital value range, digital filter constant, or average time.
- RTD Type:
  - Platinum 100 (PT100)
  - Japenese Platinum 100 (JPT100)
  - Platinum 1,000 (PT1000)
  - Nickel 1,000 (DIN43760)
  - Nickel 1,000 (TER5000)
  - Disable
- Digital Value Range:
  - -192 ~ 16,191
  - -8,192 ~ 8,191
  - 0 ~ 16,000
  - -8,000 ~ 8,000
- Digital Filter Constant:
  - Percentage value
- Average Time:
  - Second value
Once the settings are configured, click OK to confirm and apply the changes.
To save the configured parameters to the PLC, click Write.
Click Read to check the parameters.
For real-time monitoring and module diagnostics, click Status. This displays the current value, minimum and maximum values, firmware version of the module, and any error codes.
