Ethernet Modules

Ethernet​

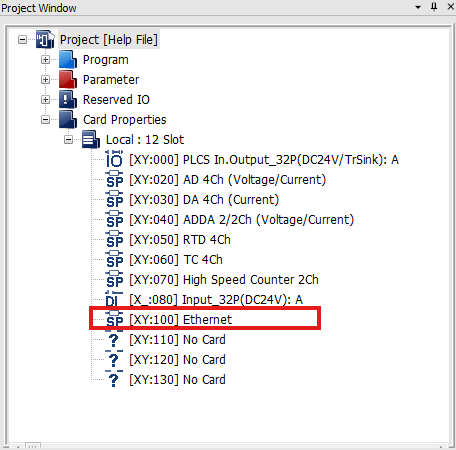

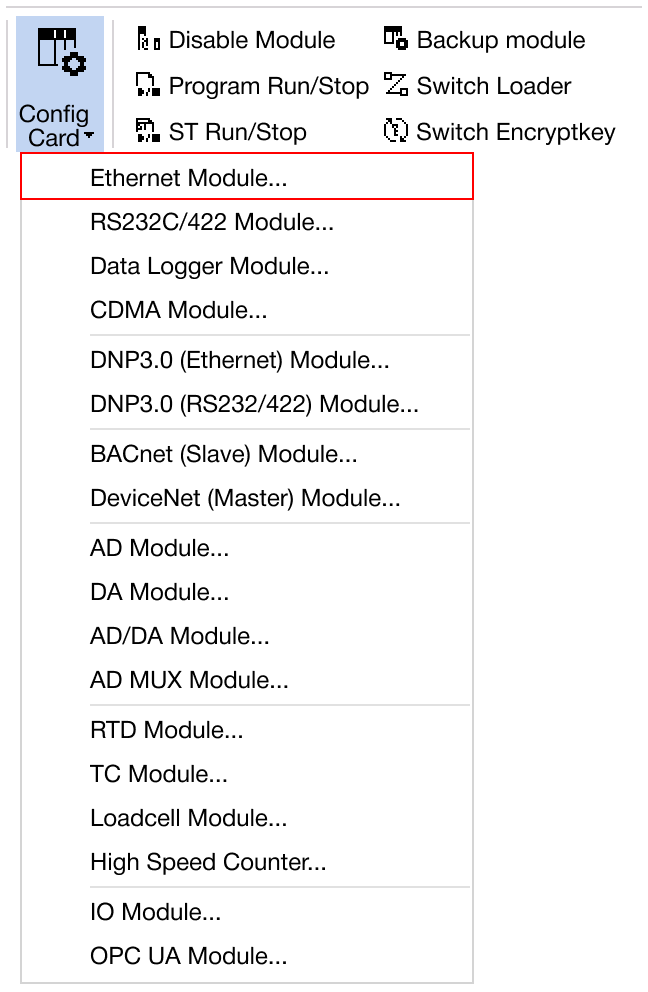

Navigate to Online → Special Module Setup → Ethernet Module or click on the Ethernet module within the Card Properties.

Applied Modules​

  • CM1-EC01A
  • CM1-EC10A
  • CM1-EC10B
  • CM1-EC10C
  • CM3-SP01EET

Ethernet Module​

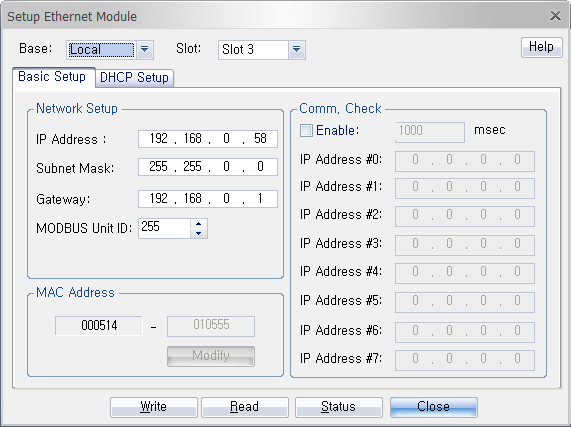

  1. Configure the module IP address, subnet mask, gateway, and Modbus Unit ID.

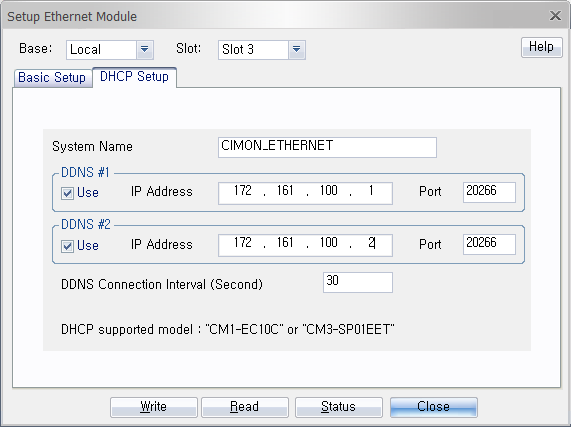

  1. Configure DHCP for the CM1-EC10C or CM3-SP01EET.

  2. Once the settings are configured, click OK to confirm and apply the changes.

  3. To save the configured parameters to the PLC, click Write.

  4. Click Read to check the parameters.

  5. For real-time monitoring and module diagnostics, click Status. This displays the current value, minimum and maximum values, firmware version of the module, and any error codes.
