TC Modules

Thermocouple (TC)

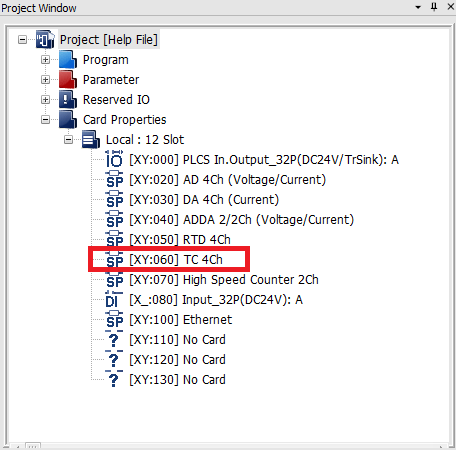

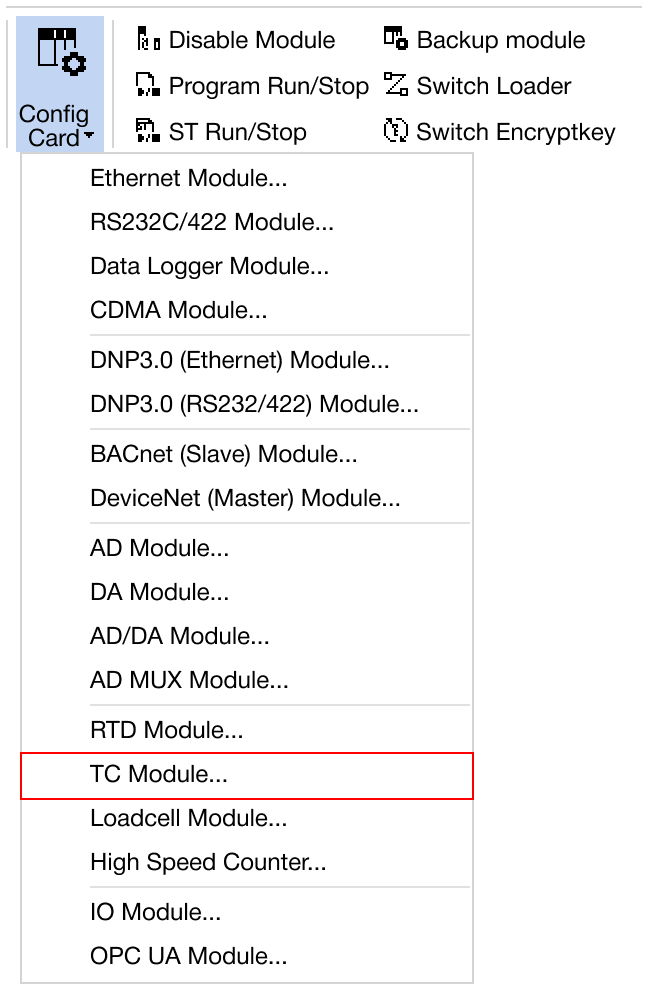

Navigate to Online → Special Module Setup → TC Module or click on the TC module within the Card Properties.

Applied Modules

• CM1-TC04A
• CM3-SP04ETO

TC Module

1. Hold CTRL to configure all channels at once.

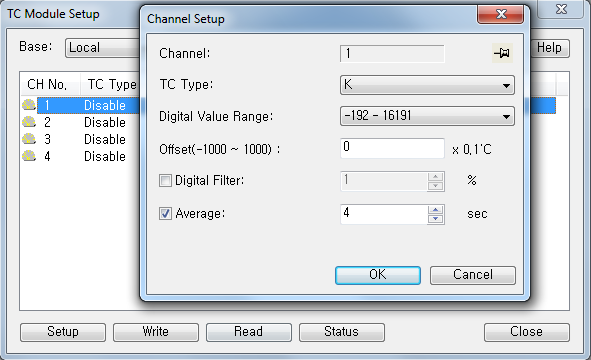

2. Click Setup to configure the TC type, digital value range, offset, digital filter constant, or average time.

   • TC Type:
     • K
     • J
     • E
     • T
     • B
     • R
     • S
     • N
     • Disable
   • Digital Value Range:
     • -192 ~ 16,191
     • -8,192 ~ 8,191
   • Offset:
     • Offset value of the measured temperature
   • Digital Filter Constant:
     • Percentage value
   • Average Time:
     • Second value

3. Once the settings are configured, click OK to confirm and apply the changes.

4. To save the configured parameters to the PLC, click Write.

5. Click Read to check the parameters.

6. For real-time monitoring and module diagnostics, click Status. This displays the current value, minimum and maximum values, firmware version of the module, and any error codes.
