Alarm Summary Information

Alarm Summary Tables

Active Alarm

Item	Description
Active Alarms	Displays the currently triggered alarms.
Shelved Alarms	Opens the Shelved Alarms tab.
Historical Alarms	Opens the Historical Alarms tab.
Label Filter	Allows users to decide which alarms they want to view based on labels.
Check All	Selects all alarm messages in a specific tab.
Active	Checking and unchecking this box will display or hide the active alarms.
Cleared	Checking and unchecking this box will display or hide the cleared alarms.
Active, Ack.	Checking and unchecking this box will display or hide the acknowledged-active alarms.
Cleared, Ack.	Checking and unchecking this box will display or hide the acknowledged-cleared alarms.
Acknowledge	Sets an active or cleared alarm to “Active, Ack” or “Clear, Ack”.
Shelve	Suppresses an alarm.
Unshelve	Removes the suppression of an alarm.
Time Dropdown	Sets the length of time to suppress alarms after clicking Shelve.
Delete	Deletes an alarm status from the Alarm Summary.

Basic Properties

Item	Description
Expand All	Shows all dropdown content within the Alarm Summary pane.
Collapse All	Hides all dropdown content within the Alarm Summary pane.
Name	Assigns a name to the user’s Alarm Summary object.
Initial Tab	Controls the starting tab on the initialization of the project and re-opening of the page. The default is the “Active Alarms” tab.

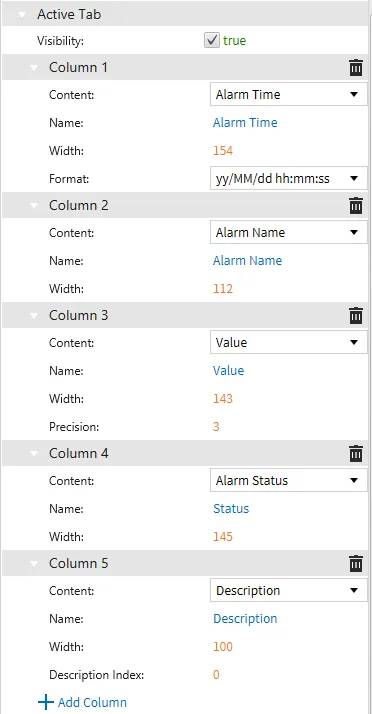

Active Tab	Customize the number of Columns and their respective properties for the Active Tab.

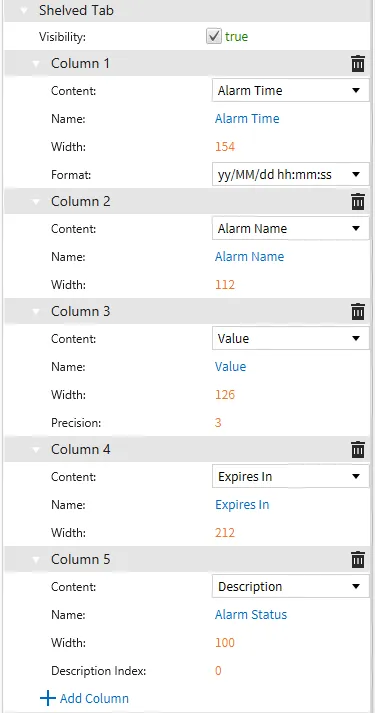

Shelved Tab	Customize the number of Columns and their respective properties for the Shelved Tab.

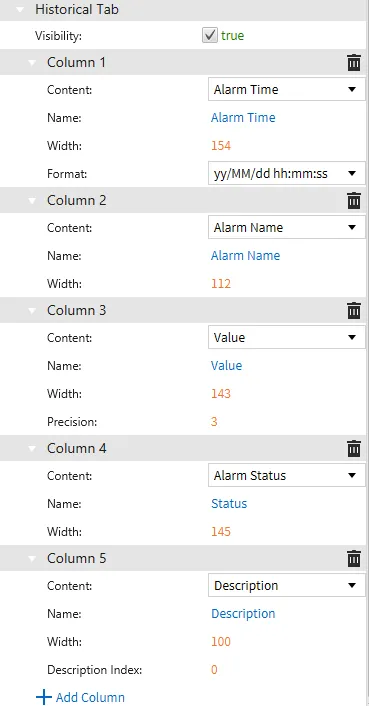

Historical Tab	Customize the number of Columns and their respective properties for the Historical Tab.
Visibility	Controls whether the tab is visible or not.
Delete	Removes the Column from the Alarm Summary.
Content	Controls which type of data is shown in the column.
Name	Assigns a name to the header of the column.
Width	Assigns the default horizontal distance for the column. This can be changed while in runtime.
Format	Selects the date/time Format for the “Alarm Time” column.
Precision	Selects the number of decimal places to follow a value.
Description Index	Assigns the Description to display based on No. # in Edit Alarm’s Descriptions tab.
Add Column	Allows the user additional columns for their Alarm Summary.

Appearance

Item	Description
Visibility	Controls whether the Alarm Summary is displayed or hidden. A tag may be bound to this property to control the value in runtime.
Opacity	Controls the transparency of the Alarm Summary. A tag may be bound to this property to control the value in runtime.
Blinking	Controls whether the Alarm Summary blinks. A tag may be bound to this property to control the value in runtime.
Blink Interval (ms)	Controls how often the Alarm Summary blinks.
Background Color	Controls the color of the cells within the Alarm Summary. A tag may be bound to this property to control the value in runtime.
Active Color	Controls the color in which active alarms are displayed. A tag may be bound to this property to control the value in runtime.
Active Acknowledged Color	Controls the color in which active acknowledged alarms are displayed. A tag may be bound to this property to control the value in runtime.
Cleared Color	Controls the color in which cleared alarms are displayed. A tag may be bound to this property to control the value in runtime.
Cleared Acknowledged Color	Controls the color in which cleared acknowledged alarms are displayed. A tag may be bound to this property to control the value in runtime.
Font Name	Controls the font style of the displayed alarm text.
Display Header	Controls whether the header of each column is shown or not. A tag may be bound to this property to control the value in runtime.
Display Grid Lines	Controls whether the borders between cells are shown or not. A tag may be bound to this property to control the value in runtime.
Display User Controls	Controls whether control buttons are shown or not. A tag may be bound to this property to control the value in runtime.
Show Active Acknowledged	Controls the initial selection of whether Active Acknowledged alarms are displayed or hidden. A tag may be bound to this property to control the value in runtime.
Show Active Unacknowledged	Controls the initial selection of whether Active Unacknowledged alarms are displayed or hidden. A tag may be bound to this property to control the value in runtime.
Show Cleared Acknowledged	Controls the initial selection of whether Cleared Acknowledged alarms are displayed or hidden. A tag may be bound to this property to control the value in runtime.
Show Cleared Unacknowledged	Controls the initial selection of whether Cleared Unacknowledged alarms are displayed or hidden. A tag may be bound to this property to control the value in runtime.

Transform

Item	Description
X	Controls the horizontal placement of an object. A tag may be bound to this property to control the value in runtime.
Y	Controls the vertical placement of an object. A tag may be bound to this property to control the value in runtime.
Z index	Controls the layering of objects. Objects with a lower z-index will lay on top of objects with a higher z-index. The lowest z-index is 0.
Width	Controls the horizontal distance of an object. A tag may be bound to this property to control the value in runtime.
Height	Controls the vertical distance of an object. A tag may be bound to this property to control the value in runtime.
Rotation	Controls the rotational orientation of an object. A tag may be bound to this property to control the value in runtime.
Use Percentage	Controls whether Rotation Centers X and Y are used as percentages or values.
Rotation Center X	Sets the x-position of where the object will rotate from.
Rotation Center Y	Sets the y-position of where the object will rotate from.

Shelved Alarm

Item	Description
Active Alarms	Opens the Active Alarms tab.
Shelved Alarms	Displays the shelved alarms.
Historical Alarms	Opens the Historical Alarms tab.
Check All	Selects all alarm messages in a specific tab.
Unshelve	Removes the suppression of an alarm.

Historical Alarm

Item	Description
Active Alarms	Opens the Active Alarm tab.
Shelved Alarms	Opens the Shelved Alarms tab.
Historical Alarms	Documents every alarm status change.
Label Filter	Allows users to decide which alarms they want to view based on labels.
Check All	Selects all alarm messages in a specific tab.
Active	Checking and unchecking this box will display or hide the active alarms.
Cleared	Checking and unchecking this box will display or hide the cleared alarms.
Active, Ack.	Checking and unchecking this box will display or hide the acknowledged-active alarms.
Cleared, Ack.	Checking and unchecking this box will display or hide the acknowledged-cleared alarms.
Delete	Removes an alarm status from the Alarm Summary.
